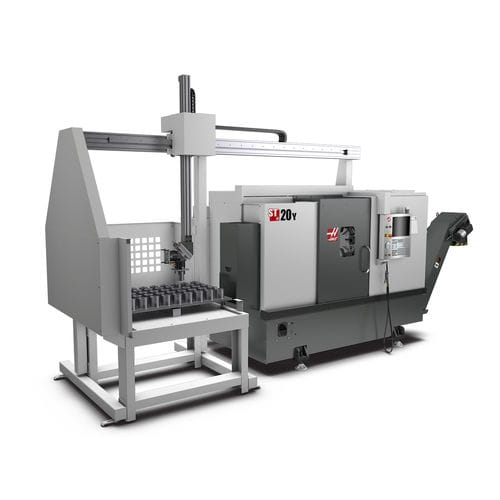

The Haas Automatic Parts Loader is a simple and affordable way to automate part production and boost productivity on Haas turning centers. It is designed and built exclusively for use on Haas turning centers, and connects directly to the Haas control. Includes CNC Control Cabinet Cooler, Remote Jog Handle-Touch, and Auto Door when ordered with a machine, requires Remote Jog Handle and Auto Door when ordered separately. Units built after 06/01/2021 receive/require the Remote Jog Handle-Touch-XL. The APL is compatible with the sub-spindle option, but can only load/unload parts from the lathe main spindle. NOTE: CE compliance requires the optional safety guard fencing. All-inclusive design, with plug-and-play capabilities to Haas ST-10Y, ST-15Y, ST-20, ST-20Y, ST-25, ST-25Y, ST-28, and ST-28Y turning centers. Interfaces directly with the Haas control Accommodates parts up to 5.8′ diameter x 5′ length x 10 lb (147 mm x 127 mm x 4.5 kg) Includes light curtain for safe operation (non-CE) CE compliance requires the optional safety guard fencing Made in the USA
Технические характеристики
CharacteristicsControl typeCNCNumber of axes3-axisOther characteristicshigh-productivityDiameter
147 mm (5.79 in)
Overall lenght
1,219 mm (48 in)
Weight
1,043 kg (2,299 lb)
