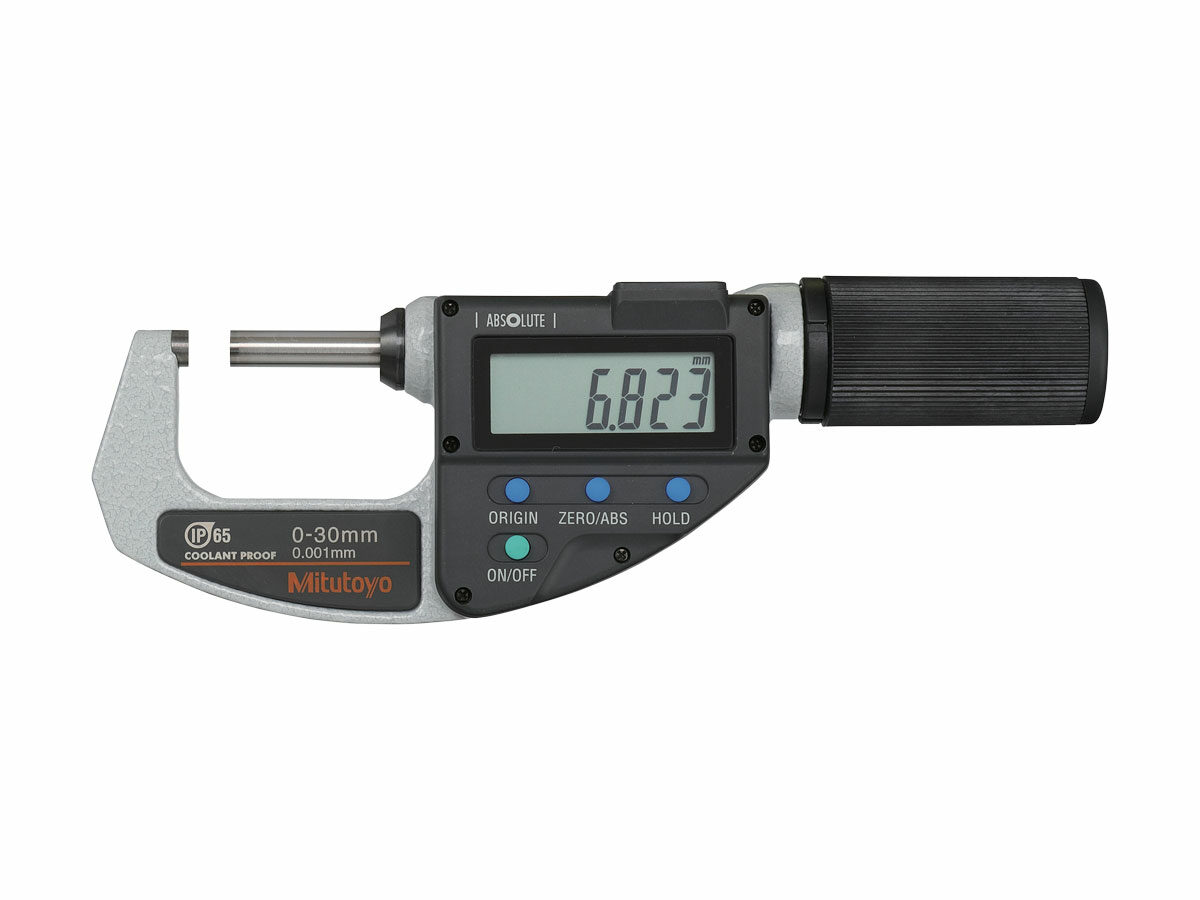

The Mitutoyo Digimatic Quickmike coolant proof digital micrometer feeds the spindle 10mm per thimble rotation, or 20-times faster than standard micrometers. This speed provides quicker measurements on different sized features. Its wide 30mm / 1.2” measuring range allows for measuring of different workpieces without sacrificing speed or accuracy.
- The Quickmike provides a speedy spindle feed of 10mm / .4” per thimble rotation compared to the conventional micrometer with 5mm / .025” per rotation.
- Non-rotating spindle and the new ratchet friction thimble reduces torsion on softer parts being measured
- Ratchet thimble allows for easy single-hand use when measuring objects
- ABSOLUTE linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Elimination of overspeed errors provides a higher measurement reliability and repeatability
- IP54 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for use on most shop floor environments
- Available with SPC data output capabilities
- Includes a standard bar to set the origin point (for models with 25-55mm / 1-2.2” ranges or larger)
- Supplied in fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Resolution: | Accuracy: | Mass: | Flatness: | Parallelism: | |
|---|
| 293-668-20 | ![]() | Metric | 50-80mm | 0.001mm | ±3µm | 525g | 0.3µm | 2µm or less |
| 293-669-20 | ![]() | Metric | 75-105mm | 0.001mm | ±3µm | 625g | 0.3µm | 3µm or less |
| 293-676-20 | ![]() | Metric, Inch | 0-1.2″ / 0-30.48mm | 0.00005″ / 0.001mm | — | 275g | 0.3µm | 0.00008″ or less / 2µm or less |
| 293-677-20 | ![]() | Metric, Inch | 1-2.2″ / 25.4-55.88mm | 0.00005″ / 0.001mm | — | 355g | 0.3µm | 0.00008″ or less / 2µm or less |
| 293-678-20 | ![]() | Metric, Inch | 2-3.2″ / 50.8-81.28mm | 0.00005″ / 0.001mm | — | 525g | 0.3µm | 0.00008″ or less / 2µm or less |
| 293-679-20 | ![]() | Metric, Inch | 3-4.2″ / 76.2-106.68mm | 0.00005″ / 0.001mm | — | 625g | 0.3µm | 0.00012″ or less / 3µm or less |
| 293-668-20 |
| 293-669-20 |
| 293-676-20 |
| 293-677-20 |
| 293-678-20 |
| 293-679-20 |
Технические характеристики
| Technology: | Digimatic |
|---|
| IP Rating: | IP65 |
|---|
| SPC Output: | Yes |
|---|
| Ratchet/Thimble: | Ratchet Friction Thimble |
|---|
| Measuring Force: | 5-12N |
|---|
| Measuring Faces: | Carbide tipped |
|---|
| Display: | LCD |
|---|
| Battery: | SR44 (1pc.) 938882 |
|---|
| Battery Life: | Approx. 5 years under normal use |
|---|
| Optional Accessories: | 05CZA662, 05CZA663 |
|---|
