Features:
- Output Voltage: 0-60
- Output Curent: 0-100
- Output Power: 6000 Watts
- 3Ø 208 VAC input
- Switching Frequency: Typical 31 kHz, 62 kHz output ripple
- Power Factor Correction (PFC)
- Zero voltage “soft switching”
- Constant power mode
- 16-bit digital processing
- Ten store/recall locations
- 99-step, menu-driven auto sequencing
- Advanced internal programming
- Nine self-protection mechanisms
- Isolated analog programming
- RS-232 interface
- LabView® drivers
- Bright vacuum fluorescent display
- Front panel software-based calibration
- Remote sense with 5V line loss compensation
- UL, CSA,CE approvals, FCC compliant

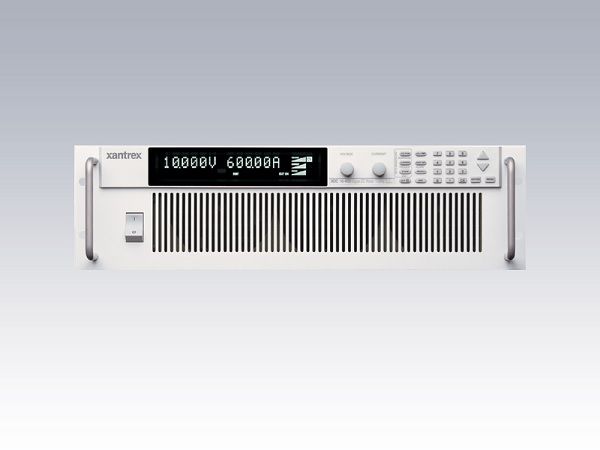

The Xantrex XDC60-100 is a digital, programmable DC power supply that is designed for use in OEM, ATE, burn-in, magnet charging, and other high power systems for a broad range of applications. The XDC60-100 uses a newly developed digital technology which, combined with “Soft Switching,” provides superior performance and a high level of user control through both front panel and remote interfaces.
Технические характеристики
| Manufacturer | Xantrex |
|---|---|
| Condition | Used |
| Current | 100 A |
| Voltage | 60 V |
| Power | 6 kW |
