Product Information

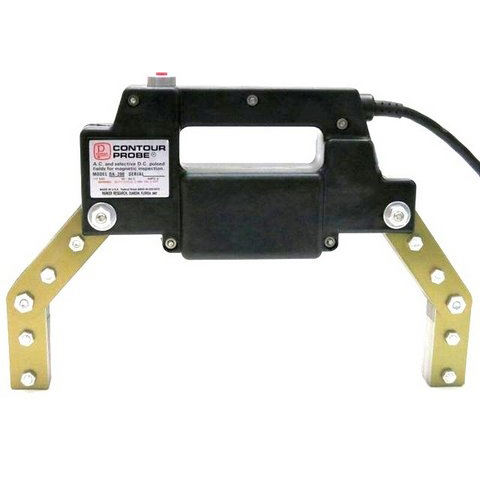

As with the other Parker probes, the B-300 has fully adjustable legs which allow the strong AC field to be applied directly to the precise area to be inspected, regardless of part size or mass.
- UNITS ARE AVAILABLE IN 115, 230 AND 42-48 VAC
- 115 VAC, 230 VAC AND 42-48 VAC ARE CE COMPLIANT
- ONE YEAR REPAIR/REPLACEMENT GUARANTEE
SPECIFICATIONS
B-300
B-300S
B-48
Physical
7.25 H × 9.25 L × 2.25 W
Line Voltage Single Phase 115 VAC
50/60 Hz 230 VAC
50/60 Hz 42-48 VAC
50/60 Hz Line Current 6 A 3 A 6.5 A Duty Cycle
2 minutes on – 2 minutes off
Weight
7½ lb
Construction
Polyurethane-filled glass/nylon housing
10 foot / 3 wire power cord
Span
0-12 in. across poles
