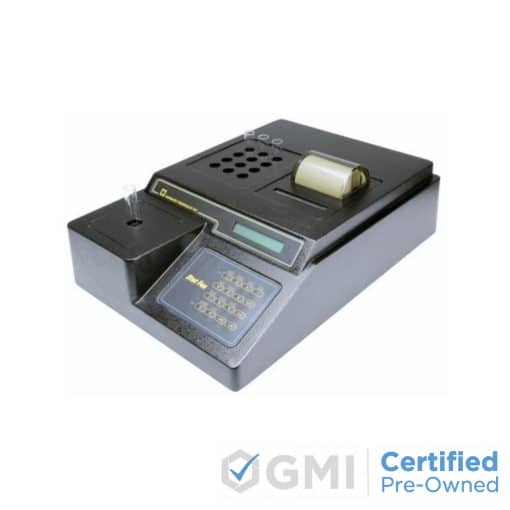

Awareness Technology, Inc. Stat Fax 1904 Химический анализатор

Product Description IAD filters Mosquito flowcell Bichromatic optics Large non-volatile memory 12 station 37C incubation block Temperature-controlled read cell Endpoint and kinetic assay capability The Stat Fax 1904 Chemistry Analyzer from Awareness Technologies is a smart and reliable system featuring a step-by-step prompting and on-board graphics printer. This high performance chemistry analyzer employs a bichromatic optical system with six wavelengths, including 340 nm and pre-programmed calculation facility for both kinetic and endpoint assays. When integrated with a Mosquito flowcell accessory, the Stat Fax 1904 allows the user to read volumes as small as 250 microliters. The 1904 is also designed with a non-volatile memory system that enables it to store up to 60 user programs. Technical Specifications Length 9 in Width 13.25 in Depth 4.875 in Weight Drift of no more than 0.005 A in 8 hours Display Alpha numeric 16-characater LCD Keyboard 16-key domed membrane switch-enunciating Power Requirements 115V or 230V AC- 50-60Hz (switch selectable) Serial Port Output only- custom cable available- 2400 baud- 1 start- 8 data- 1 stop- no parity- no handshake Processor Z80A or Z180 Non-volatile Memory Battery supported RAM- holds more than 32 tests and curves Linear Measurements -0.20 to 3.0 Absorbance units (A) Bandwidth 10 nm Photometric Accuracy +/- 1 percent or better Stability Drift of no more than 0.005A in 8 hours Light Source Tungsten lamp with lamp saver feature Standard Wave Lengths 340- 405- 450- 505- 545- 600nm Filter Types Multiple cavity hard coat interference. 10nm half bandpass Vessel Standard 96-well microtiter plates- or strip trays

Технические характеристики
