Features:
DC Output:
- Volts Range: 0-150 VDC
- Amps Range: 0-7 A
Output Impedance Voltage Mode:
- Series R: 0.42 mW
- Series L Slow: 4 mH
- Series L Fast: 40 mH
Output Impedance Current Mode:
- Shunt R: 300 kW
- Shunt C Slow: 1,050 mF
- Shunt C Fast: 0.3 mF
- Source Voltage Offset: <,1 mV
- Output Load: 1 mA max.
Ripple and Noise:
- Slow Mode: 0.3 mV RMS
- Fast Mode: 3 mV RMS
- Programming Bandwidth: 1.7 kHz minimum
- Programming Time Constant: 95 msec
- Input Voltage: 115 VAC — 47-65 Hz
Технические характеристики

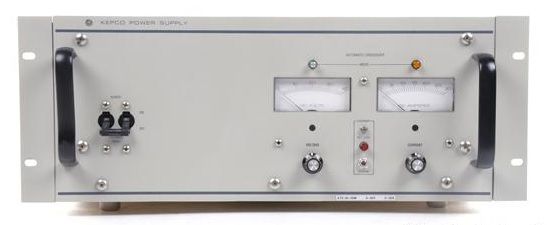

| Manufacturer | Kepco |
|---|---|
| Condition | Used |
| Current | 7 A |
| Voltage | 150 V |
| Power | 500 W |
