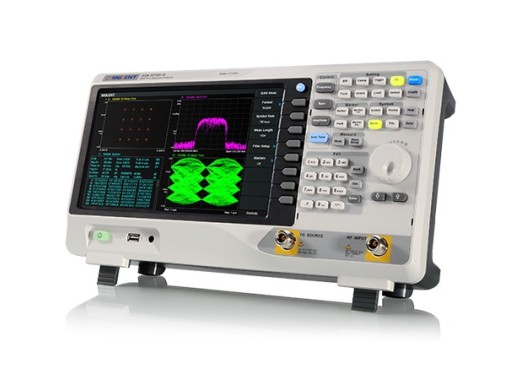

The Siglent SSA3050X-R is a real-time spectrum analyser with a range up to 5.0 GHz and a bandwidth of 25 MHz. A real-time spectrum analyser uses the Fast Fourier Transform to convert the signal from the time domain to the frequency domain. This ensures that short and fast signals can be better received. This mode offers a 100% guarantee to analyse all signals longer than 7.2 s. Due to the low displayed noise level of these analysers, low power signals, such as harmonic signals and interference sources, are well displayed and easy to analyse. Also, the low minimum resolution bandwidth of 1 Hz makes it easy to separate signals with frequencies that are close together. The SSA3050X-R comes with a large 10.1-inch touchscreen on which all signals can be displayed in detail.
The Siglent SSA3050X-R is equipped with a tracking generator as standard. This, together with the high frequency range of 5.0 GHz, makes this analyser at the top of the segment. The spectrum analyser is not out of place in any professional working environment and can be used, for example, for EMC pre-compliance applications. EMI expansion and other options for this analyser can be found at the bottom of this page.
Siglent SSA and SVA series
Siglent offers several series of spectrum analysers, of which you can find a brief overview below.
SerieSSA3000XSSA3000X-PLUSSSA3000X-RSVA1000X Models SSA3021X
SSA3032X SSA3015X-PLUS
SSA3021X-PLUS
SSA3032X-PLUS
SSA3075X-PLUS SSA3032X-R
SSA3050X-R
SSA3075X-R SVA1015X
SVA1032X
SVA1075X Max. bandwidth 3.2 GHz 7.5 GHz 7.5 GHz 7.5 GHz VNA No No Yes Yes Real-time No No Yes, and DTF No Options AMK, EMI, refl AMK, EMI, refl, AMA, DMA AMK, EMI, AMA, DMA, RT40 AMK, EMI, AMA, DMA, DTF Connectivity — Touchscreen, Mouse & keyboard, Webserver Touchscreen, Mouse & keyboard, Webserver Touchscreen, Mouse & keyboard, Webserver Model overview SSA3000X-R series
Here you will find an overview of the differences between the models of the Siglent SSA3000X-R series. The main difference lies in the bandwidth.
ModelSSA3032X-RSSA3050X-RSSA3075X-R Bandwidth 9 kHz — 3.2 GHz 9 kHz — 5.0 GHz 9 kHz — 7.5 GHz Tracking generator 100 kHz — 3.2 GHz 100 kHz — 5.0 GHz 100 kHz — 7.5 GHz Price 3995 €3,995.00 Excl. VAT 7495 €7,495.00 Excl. VAT 9115 €9,115.00 Excl. VAT Specifications Resolution1 Hz Real-time analyse bandwidth25 MHz (standard), 40 MHz (optional) RBW1 Hz — 3 MHz DANL -165 dBm VNA Yes Total amplitude accuracy Third Order Intercept + 14 dBm Phase noise -98 dBc/Hz Amplitude display Log: 1 — 200 dB
Linear: 0 — reference Interfaces USB host, USB device, LAN Display 10.1′ touchscreen (1024×600) Weight4.6 kg Dimensions 393 x 207 x 116.5 mm Options Calibration kit Open load Shortcircuited load Phase matched load (50 ) Through adaptor Calibration 339 €339.00 Excl. VAT Info Configure SSA3000XR-WDMA Digital modulation analysis. ASK, FSK, MSK, PSK, QAM. SSA3000XR-WDMA 905 €905.00 Excl. VAT Info Add to Cart SSA3000X-R-AMA Analog modulation analysis. AM, FM. SSA3000XR-AMA 425 €425.00 Excl. VAT Info Add to Cart SSA3000XR-EMI EMI filters option. EMI-filter, quasi-peakkdetector and pc-hostsoftware. SSA3000XR-EMI 745 €745.00 Excl. VAT Info Add to Cart SRF5030T EMI probes This near field probe set contains 3 magnetic field probes (20, 10 and 5 mm resolution) and 1 electric field probe (5 mm resolution) for pre-compliance testing of printed circuit boards. SRF5030T 499.17 €499.17 Excl. VAT Info Add to Cart SSA3000XR-AMK Advanced measurement kit for measuring channel power, adjacent channel power ratio, occupied bandwidth, time domain power, carrier noise ratio, third-order intermodulation analysis and Harmonic analysis. SSA3000XR-AMK 515 €515.00 Excl. VAT Info Add to Cart SSA3000XR-RT40 With this option you increase the real-time bandwidth of the analyser from 25 MHz to 40 MHz. SSA3000XR-RT40 1255 €1,255.00 Excl. VAT Info Add to Cart USB to GPIB With this option, you can can control the function generator through GPIB. USB-GPIB 123 €123.00 Excl. VAT Info Add to Cart Accessories
The Siglent SSA3050X-R is supplied including:
- Power cord
- USB cable
- Calibration certificate
