Анализатор мощности GSC60 HT Instruments

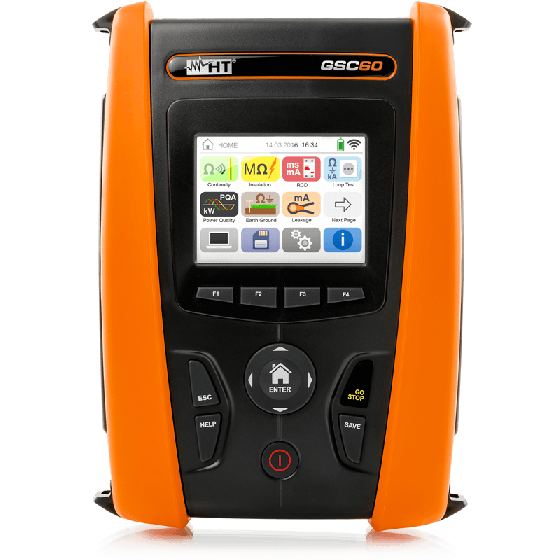

GSC60 HT Instruments Power Analyzer

GSC60 One instrument for all electrical safety tests and Power Quality analysis

Features:

• One instrument for all electrical safety tests and Power Quality analysis
• GSC60 was designed with the aim of making safety of electrical installations visible and valuable, easily and quickly.
• Thanks to the new HTOS™ system the unit displays a message OK — NOT OK after completing the test.
• The user interface, totally updated under HTOS™, permits to set and carry out measurements in few steps.
• You can store all recorded data and create folders and subfolders for each kind of test adding comments and notes by means of virtual keyboard.
• GSC60 is also a three-phase power and energy consumption analyzer boasting, as unique feature, its FREE APP HTAnalysis compatible with iOS and Android.
• Test results can be transferred through Wi-Fi onto smartphone or tablet enclosing a picture, a video or a voice note to each measurement. You can transfer everything onto HT Cloud and make data available in real time for your colleagues all over the world.
• GSC60 makes the job of installer, electrician or consultant easy, rapid and cost-effective.

Specifications:

Functions

• Touchscreen colour display
• Integrated WiFi connection and compatibility with HTANALYSIS App
• Continuity of protective circuit with 200mA
• Insulation with voltage 50, 100, 250, 500, 1000VDC
• Time/Current tripping of A, AC General, Selective and Delayed RCDs up to 1000mA
• Time/Current tripping of type B RCDs up to 300mA
• Tripping time and current of RCDs with separate clamp jaws type B, A, AC Standard, Selective and Delayed up to 10A
• Loop impedance P-N, P-P, P-PE and calculation of prospective short-circuit current
• Line/Loop impedance with high resolution (with optional accessory IMP57)
• Percentage voltage drop on the line
• Measurement and recording of leakage currents and environment parameters
• Three-phase Power quality and Energy consumption analysis:
• 9 types of electrical systems 1Φ-2wires, 1Φ-split phase, 3Φ-3 wires, 3Φ-Aron, 3Φ-Open Δ, 3Φ-Open Y, 3Φ-2 el. 1/2, 3Φ-4 wires Y, 3Φ-High Leg.
• 632 parameters can be recorded for over two months
• Voltage Anomalies (dips and peaks) with a resolution of 20ms @50Hz
• Measurement/recording of Active, Reactive, Apparent Power
• Measurement/recording of Active, Reactive, Apparent Energy
• Measurement/recording of Cosphi, Power Factor
• Measurement/Recording of Voltage and Current Harmonics up to 49th with THD%
• Voltage/current vector diagram
• Voltage/current waveforms
• Tables or histograms of Harmonics and THD%
• Summary table of main electric parameters
• Help on line on the display
• Protection category CAT IV

Guidelines

• EMC: IEC/EN61326
• EN50160
• EN50522
• EN60909-0
• EN61936-1
• IEC/EN61010-031
• IEC/EN61010-1
• IEC/EN61010-2-032
• IEC/EN61187
• IEC/EN61557-1
• IEC/EN61557-10
• IEC/EN61557-2
• IEC/EN61557-3
• IEC/EN61557-4
• IEC/EN61557-5
• IEC/EN61557-6
• IEC/EN61557-7
• UNE20460
