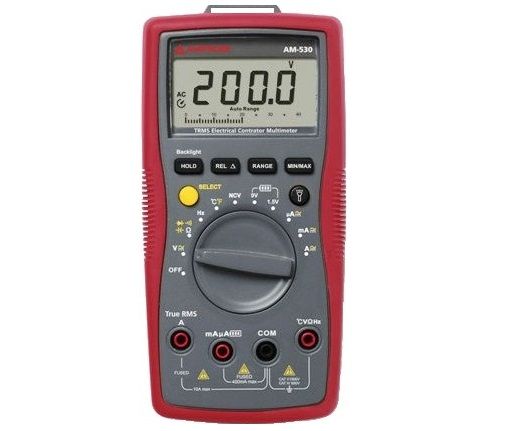

AM-530 Fluke Multimeter

Features:

• True-rms technology improves accuracy in electrically noisy environments
• Measures AC/DC voltage up to 600V, AC/DC current, resistance, frequency, capacitance, and temperature
• Non-contact voltage detection enhances safety
• Audible continuity quickly identifies shorts and opens
• Diode test to verify diode polarity
• Data hold freezes the reading on the display for further analysis
• MIN/MAX recording records min/max measurements over time to show voltage fluctuations
• Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
• Combines user friendly features such as, auto power-off to conserve battery life, low battery warning, a “third hand test probe holder, built-in test leads storage, a built-in flashlight, and a Velcro strap to hang the meter
• Auto and manual-ranging delivers maximum flexibility
• Backlit LCD display with analog bar graph makes it easy to view results
• CAT III 600V safety rated

Specifications:

• AC Voltage — 400 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
• DC Voltage — 400 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
• AC Current — 400.0 μA, 4000 μA, 40.00 mA, 400.0 mA, 4.000 A, 10.00 A
• DC Current — 400.0 μA, 4000 μA, 40.00 mA, 400.0 mA, 4.000 A, 10.00 A
• Frequency — 10 Hz to 10 MHz

The Amprobe AM-530 autoranging digital multimeter is the multimeter of choice for professional electrical contractors. The AM-530 is a True-rms digital multimeter so it accurately measures voltage on systems affected by harmonics. With its full menu of digital multimeter features, you can use it to: measure and verify the presence of voltage before connecting new equipment or performing repairs, run new wiring, check continuity of electrical connections, identify blown fuses, troubleshoot motors or check transformers. The CAT III 600V safety rating provides an extra measure of safety for high voltage multimeter applications. Its built-in flashlight helps you see wire colors in the dark and “third hand probe holder gives you an extra hand when you need it.
