These soldering tips are suitable for the following Aoyue stations: 2702A+, 2703A+, 2738A+ and the 2901.
.
These active tips of Aoyue contain a 70W heating element, this element is integrated in the tip. Due to this system, the tip is easily exchanged with another shape tip in the bolt. Even if the tip is still warm,
There are several tip shapes available. Each tip shape is described below

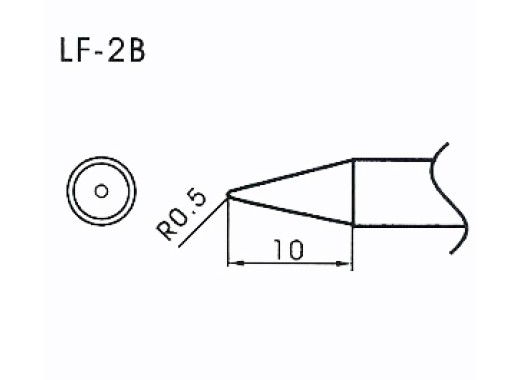

. Round
The 0.8 mm round soldering tip is the tip that comes standard with Aoyue soldering stations. This tip is already small enough for fine SMD work. The sharper tips with a radius of 0.1, 0.2 and 0.5 mm are better suited for the finest work. Keep in mind that tiped tips do not pass on the heat of the soldering iron as well as thick tips.
Slope
The beveled tips are fine tips. Because the contact surface with the soldering is relatively large, tin flows easily with these tips. The 0.2 mm version is suitable for SMD, the 1.0 mm version is suitable for trough-hole as well as SMD. Chisel
Dimension A in the picture alongside is 1.2, 1.6 mm, 2.4 mm or 5.0 mm. The chisel tips are the most popular tips. The 1.6 mm tip is ideal for through-hole soldering, the 5.0 mm tip is for more robust work.
Mesh
This tip has a knife shape. The tip is 1.2 mm thick.
Hol
This tip has a hollow notch. The notch is filled with tin, after which the tip is dragged over SMD contacts. The tin is left behind and takes care of the connection.
Tunnel
This tip is very wide and narrow, and has a notch of 0.2 mm in the middle. The length of this tip is 7.2 mm.
