Description

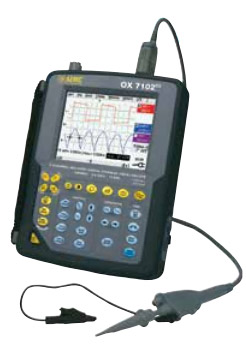

The AEMC OX 7102-CII and OX 7104-CII oscilloscopes are at the top of their category with 12-bit/1 GS/s converters, a sampling rates of 50 GS/s on periodic signals and capture of transients lasting 2 ns or more. The AEMC Model OX 7102-CII has two isolated measurement channels (100 MHz) and the AEMC Model OX 7104-CII has four isolated measurement channels (100 MHz).
The AEMC OX 7102-CII and OX 7104-CII oscilloscopes can be controlled using either the ‘Windows-like’ menus on the touch screen or 33 dedicated keys offering direct access to the most frequently-used functions. For even better performance in the field, it offers a new patented system of ‘plug and play’ accessories, individual insulation of each of the measurement channels, the extensive remote management possibilities offered by the Ethernet link with a WEB server and a variety of built-in instruments, including a 200 kHz multi-channel multimeter.
Featuring five complimentary tools in one — an oscilloscope, FFT analyzer, TRMS multimeter, harmonic analyzer and a recorder. The OX 7102-CII and OX 7104-CII are rugged and eronomic hand-held instruments that are the perfect tools for both laboratory and field testing.
Applications for the AEMC OX 7102-CII and OX 7104-CII oscilloscopes:
- On-site contractor maintenance — industrial or electronic
- ‘Internal’ plant maintenance
- Installations and start-up
- Industrial process
- Quality control
- Research and laboratory — engineers or technicians
- Field service
AEMC’s OX 7102-CII and OX 7104-CII oscilloscopes ship complete with:
- (2) PROBIX PRHX1 1/10 probes 250 MHz, 600 V CAT III
- (2) PROBIX 4 mm banana plug adapter
- (1) US power adapter (115 V, 60 Hz)
- (1) Battery pack, NiMH 9,6 V, 3.8 ah
- (2) Set-of-two color-coded leads, 1.5 m (red/black) with needle probe tips
- (2) Ethernet cables (one straight/one crossed)
- (2) Set-of-two grip probes (red/black)
- (2) stylus
- Aluminum carrying case
- SX-METRO data processing and analysis software
- Recorder/Harmonic/Power/50K memory option (installed)
- 3-year product warranty and registration card
- User manual CD-ROM
AEMC OX 7102-CII and OX 7104-CII Oscilloscopes Specifications Interface Screen Specifications Color 5.7′ LCD (115 x 86 mm) 320 x 240 CCFL backlighting Display Mode Vectors with interpolation No. of Curves on Screen Four traces and four references — split screen and full screen modes (tracing zone 110 x 74) Front Panel Control 32 direct shortcuts Screen Control Touch screen — ‘Windows-like’ menus and graphic commands Vertical Vertical Sensitivity 16 ranges from 2.5 mV — 200 V/div and up to 156 µV/div in verticle zoom mode (12-bit converter) — Accuracy ±1% Bandwidth 100 MHz Channels OX 7102-Cii: Two isolated channels
OX 7104-Cii: Four isolated channels Accuracy ±0.1% Input Impedance 1 MΩ ±0.5% Max. Input Voltage 600 V CAT III — derating -20 dB/decade at 100 kHz Vertical Zoom x5 maximum Horizontal Time Base Speed 35 ranges from 1 ns/div to 200 s/div Accuracy ±1.5% Horizontal Zoom x10 maximum Digital Memory Max. Sampling Speed 50 GS/s in ETS — 1 GX/s in one shot mode on each channel Vertical Resolution 12 bits Memory Capacity per Channel ‘TRC’ approx. 10 kB, ‘TXT’ approx. 20 kB User Memory 2 MB Other Modes Envolope mode (Factors from 2 to 64) XY Mode Between two from the four traces — math functions and cursors Other Functions Autoset Complete autoset <, 3s with recognition of channels, Frequency >, 30 Hz FT Analyzer & Math Functions FT, +, -, z, / — Editor of mathematical functions Cursors Two or three cursors: V and T simultaneous or Phase Resolution 12 bits, display four digits Power Source Rechargeable 9 v 3.8 Ah battery (included) Battery Life Four hour operation when fully charged Communication Ethernet, RS-232, Web Server
Технические характеристики
Features
- Accuracy: ±1.5%
- Sampling rate 1 GS/s in one-shot mode and 50 GS/s in ETS mode
- 2 or 4 isolated measurement channels (600 V CAT III) and up to 8 curves on screen
- 2 or 4 isolated independent TRMS digital multimeters (8000 counts, 200 kHz)
- LCD touch screen and Windows-like menus on screen
- Probix ‘plug & play’ input terminals and smart sensors
- Standard ‘real-time’ FFT analysis and calculation functions on channels
- Multi-interface communication connectors: RS232, Centronics and Ethernet
- Memory depth of up to 50,000 points per channel (Oscilloscope and Recorder modes)
- Triggering on measurement thresholds in oscilloscope and multimeter modes
- Web server (FTP server/client) with cursors and automatic measurements
- MiniFlex sensors, powered by the instrument
- Power measurement option included for your power measurements
