Additional Features:
- 100 A AC/DC Current probe/BNC
- Frequency range: DC to 100 kHz
- Maximum input current: 100 A peak
- Output: 10 mV/A, 100 mV/A
- Maximum conductor diameter: 11.8 mm (0.46 in.)
- Termination: BNC
- Maximum bare-wire voltage: 600 V (CAT III)
- Safety: UL3111-2-032, CSA1010.2.032, EN61010-2-032, IEC61010-2-032
- For DMM’s and Oscilloscopes
Applications:
- Motor Drives
- Inverters
- Power Supplies
- Avionics
Recommended products:
- TPS2000, TDS1000B, TDS2000C, and TDS3000C Series oscilloscopes and DMM4020*, DMM4040*, and DMM4050* digital multimeters.
- *For instruments with banana jack inputs, Tektronix part number 012-1450-00 Female BNC to banana lead adapter is required.

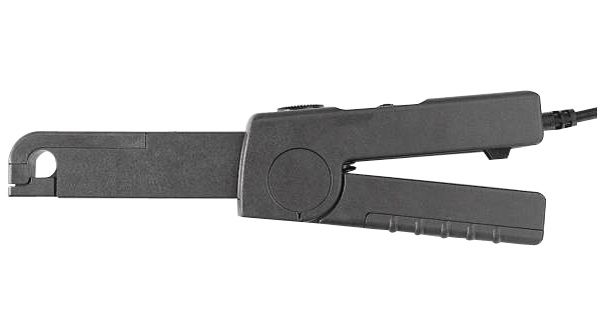

This ‘long nose’ style clamp-on probe uses a Hall Effect current sensor to provide a voltage output to oscilloscopes. It has a BNC connector and may be used with a shrouded banana plug adapter so it can also be used on digital multimeters, TekMeters, and scopes. The A622 can measure AC/DC currents from 50 mA to 100 A peak over a frequency range of DC to 100 kHz. It provides 10 mV or 100 mV output for each Amp measured.
Технические характеристики
| Manufacturer | Tektronix |
|---|---|
| Condition | New |
| Amps | 100 A |
| Frequency | 100 kHz |
