Features:

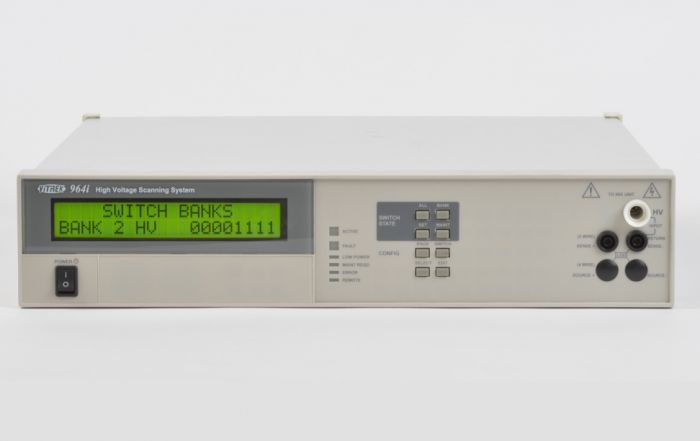

- Vitrek 964i Hipot High Voltage Switching System (8 Card Capacity)
- High Voltage Switching System Mainframe (8 card capacity)
- “The 964i rear panel accommodates up to 60 output terminals. Unit shown above with 16 + terminals (HV) and 16 – terminals (return). The 964i ships with mating connectors for all +/- HV terminals 7KV and higher. Custom length HV lead sets are optionally available.”High Voltage Ratings to 3KV, 7KV, 10KV or 15KV
- High Current Ratings to 40 Amps
- Reduces hazardous operator exposure to high voltage
- Improves test quality, consistency and repeatability
- Enhances end product quality and reliability
- Up to 64 channels in a single compact unit
- Vitrek Hipot Tester control ports and RS232 interfaces standard
- GPIB optionally available
- May be controlled directly by Vitrek Hipot Tester
- Available QuickTest™ graphical software with full data
The Perfect Solution for Automated Multi-Conductor, Multi-Point Hipot Testing
You have a job to do – you have to hipot test a 16 conductor medical cable at 8500V to ensure that each conductor is properly isolated from every other conductor. You have two choices, you can try to do it manually or you can use the Vitrek 964i to automatically route the HV and return signals to the proper test points.
The manual method is extremely problematic. Slow, error prone, labor intensive, operator hazardous – don»t even think about recording the test results. The 964i on the other hand, is purpose built to fully automate all of you HV switching needs. You chose the 964i, partnered it with a Vitrek 95X Series Industrial Strength Hipot Tester and QuickTest Pro test automation software. The company wins the Malcolm Baldridge National Quality Award, you get a promotion and that corner office you»ve always wanted. Choose carefully.
The 964i HV Switching System is built precisely to meet Your HV Switching requirements.
Accessories:
- Vitrek 964i Hipot High Voltage Switching System (8 Card Capacity)
- Operator»s Manual
- Hipot Connection Test Leads
- Power Cord
Specifications:
- Dimensions (H x W x L): 558.8 mm × 533.4 mm × 154.94 mm (22 in × 21 in × 6.1 in
Технические характеристики
| Manufacturer | Vitrek |
|---|---|
| Condition | New |
