86120B Оптический измеритель Agilent

Additional Features:

• Rugged design to withstand strong shocks and vibration

Wavelength

• Range: 700 to 1650 nm (182 to 428 THz)
• Absolute accuracy: laser lines separated by &gt,30 GHz ±3 ppm (±0.005 nm at 1550 nm, ±0.004 nm at 1310 nm)
• Differential accuracy: ±2 ppm
• Minimum resolvable separation (equal power lines input): 20 GHz (0.16 nm at 1550 nm, 0.11 nm at 1300 nm)
• Display resolution: 0.001 nm, normal update mode, 0.01 nm, fast update mode

Power

• Calibration accuracy: ±0.5 dB (at ±30 nm from 780, 1310, and 1550 nm)
• Flatness: 30 nm from any wavelength, 1200 to 1600 nml ±0.2 dB, 700 to 1650 nml ±0.5 dB
• Linearity: ±0.3 dB
• Polarization dependence: 1200 to 1600 nm ±0.5 dB, 700 to 1650 nml ±1.0 dB
• Display resolution: 0.01 dB

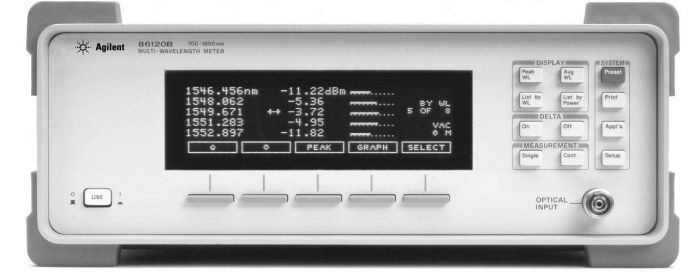

The Agilent 86120B Multi-Wavelength Meter is a Michelson interferometer-based instrument that measures wavelength and optical power of laser light in the 700 to 1650 nm wavelength range. Simultaneous measurements of multiple laser lines are performed allowing measurements of WDM (wavelength division multiplexed) signals and multiple lines of FabryPerot lasers. Each laser line is assumed to have a linewidth of less than 10 GHz.
