| 8.5, 9.953, 10.3125, 10.519, 10.664, 10.709, 11.096, 11.317 Gb/s |
Features:
- Bandwidth: 8.5 and 20 GHz
- Supported Data Rates: 155 Mb/s to 11.3 Gb/s Ref Rx
- Input Type: 3.5 mm, Single-Mode, Multimode
- Module Type: Optical, Electrical
- 9 GHz amplified optical channel for 9/125 to 62.5/125 fibers and 20 GHz electrical channel with 3.5 mm male input
- Perform waveform characterization and test transmitter compliance on multiple networking technologies with a single plug-in module

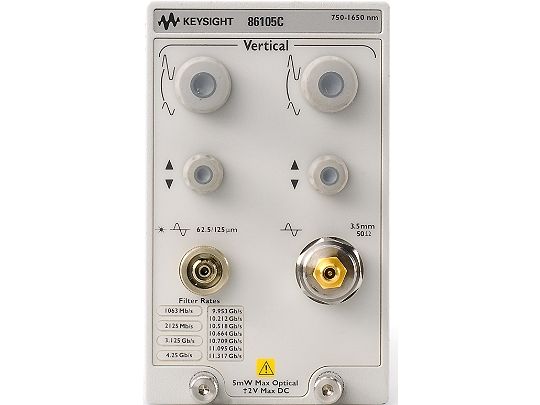

The Agilent 86105C is a 9 GHz Optical/20 GHz Electrical Sampling Module, 750 to 1650 nm-SMF and MMF.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
