| For FEC signals, substitutes clock recovery at 10.644 GHz |
Features:
- Line power
- Clockout connector
- Data out connector
- Optical input connector
- Input present connector
- Linecord receiver
Specifications:
Temperature Range-
- Operating — 0°C to +45°C
- Storage — –40°C to +70°C
EMI Compatibility —
- Conducted and radiated emissions meet the requirements of CISPR Publication 11, Class A and immunity in compliance with IEC 61326-1
Power Requirements —
- 100/120/220/240 V (±10%), 47 to 63 Hz

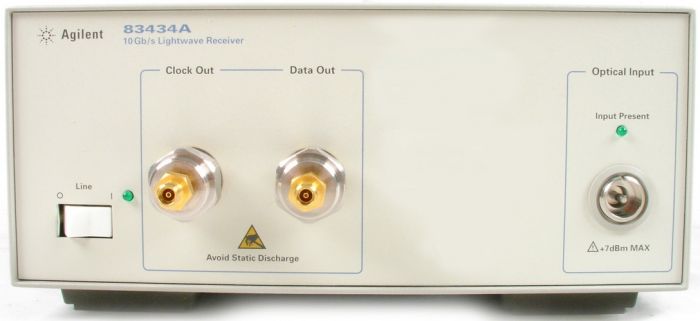

The Agilent 83434A 10 Gb/s lightwave receiver is designed to recover clock data and to provide linear, non-retimed data from digitally modulated SDH/ SONET STM-64/OC-192 optical signals, as well as signals employing forward error correction (FEC) at 10.664 Gb/s (option 106). The receiver is based on an amplified PIN receiver to produce a linear output with AGC stabilization. The receiver is designed to provide –16 dBm sensitivity with PRBS lengths to 231 –1 with BER performance of at least 1E-10.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
