Additional Features:
- Panel Mt IEC61010 4mm (0.16in) Jack for Sheathed Banana Plugs
- Solder Tab
Materials:
- Body: Polyamide
- Nut: Nickel-plated
- Solder Tab: Gold-plated Nickel Brass
Specifications:
- Max Current 36A
- Max Voltage 1000 V CAT III
- Max Resistance Less than 5 m?

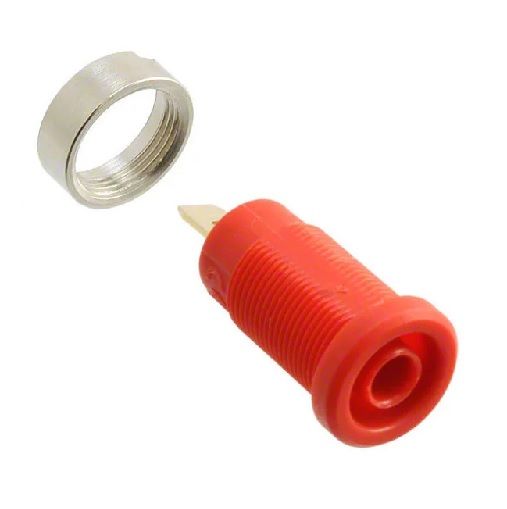

The Pomona 72913-2 is a Panel Mount Banana Jack in red for both Shrouded and Unshrouded 4mm Banana Plugs. The banana jack is nickel plated brass and features a gold plated solder tab for secure wire attachment. The connector is polyamide insulated for durability and strength. It is rated to CAT III 1000V, 36A.
Технические характеристики
| Manufacturer | Pomona |
|---|---|
| Condition | New |
| Color | Red |
