| Rack mounting kit, includes one set of track slides (90° tilt capability), mounting ears, and front panel handles for mounting in a standard 19-inch equipment rack |
| 0.1 Hz frequency resolution (provides frequency resolution of 0.1 Hz) |
| High Power Output (683xxC and 693xxB): Adds high-power RF components to the instrument in the 2–20 GHz frequency range |
| Step attenuator (10 dB/step, high-end frequency of =26.5 GHz, rated output power is reduced) |
| Step attenuator (10 dB/step, high-end frequency of =40 GHz, rated output power is reduced) |
Features:
- Broad frequency coverage including 0.1 Hz to 8.4 GHz in a single coax output
- Ultra-low SSB phase noise and spurious
- <,5 ms switching time for <,100 MHz sweep steps
- Digital frequency sweep and digital power sweep
- Wide dynamic range with accurate output levels
- Intuitive, menu-driven front panel
- Fast analog sweep
- External FM, locked or unlocked
- External AM, log or linear
- Internal pulse generator with swept delay capability for movingtarget simulation
- Flexible pulse triggering including free-run, delayed, gated, and composite
- 0 to 90% AM, log or linear, over DC to 100 kHz rates
- Four FM modes for up to 10 MHz at 8 MHz rates or 100 MHz deviation at 100 Hz rates
- Internal AM, FM, and ΦM generators, each with
- 7 modulating waveforms
The Anritsu 69317B is the ultimate in full-function signal generation. The 69317B provides all the features of the other families along with comprehensive, high-performance modulation for signal simulation applications.

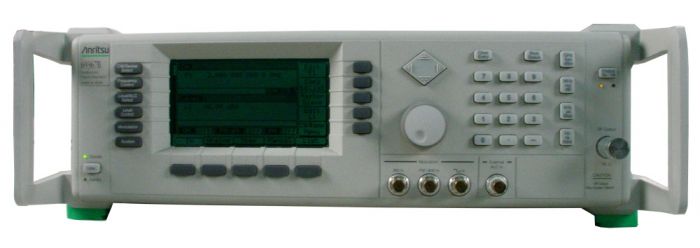

The image is for reference only. See product specification for details.
Технические характеристики
| Manufacturer | Anritsu |
|---|---|
| Condition | Used |
| Frequency | 8.4 GHz |
