Features:
- Load module
Specifications:
- Power: 30W — 300W
- Current: 0-6A — 0-60A
- Voltage: 1-80V
- Min. operation voltage (dc): 1.0V at 6A — 1.0V at 60A

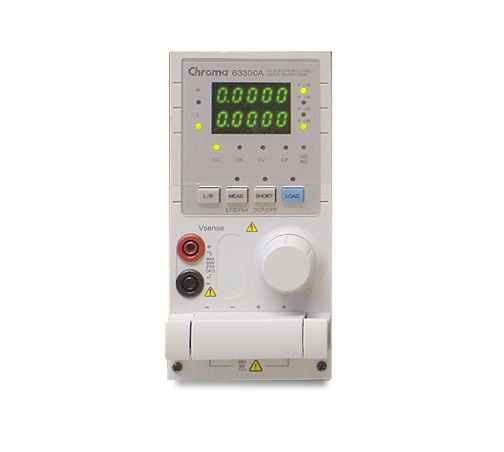

Chroma»s 63303A DC electronic load is an enhanced version of its 6310 series counterpart. These loads are packaged and rated identically to the 6310 series except they have been enhanced for automated testing. Enhancements include synchronized paralleling allowing from transient response testing using parallel load groups and high speed data transfer circuits allowing for global queries of voltage and current. Instruments come standard with front panel controls & RS232 or optional GPIB.
Технические характеристики
| Manufacturer | Chroma |
|---|---|
| Condition | Used |
| Current | 60 A |
| Type | Module |
| Voltage | 80 V |
| Power | 300 W |
