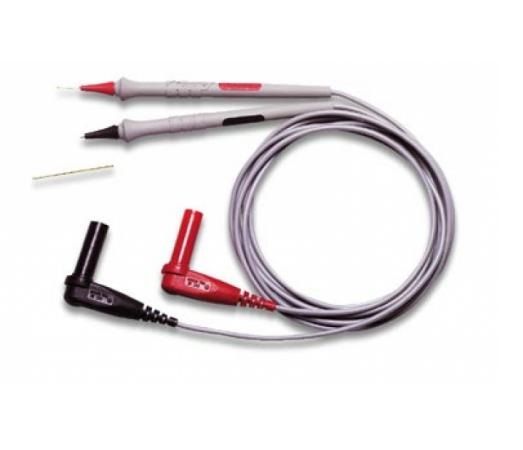

- Miniature probe is the perfect size for probing tiny, high-density circuits.
- Gold plated pogo pin tip keeps constant pressure on test point for consistent readings.
- Replaceable probe tips.
- Safety design complies with all the latest standards.
- Silicone insulated wire for extreme flexibility and high temperature resistance.
- Wear indication with dual extruded silicone leads shows black inner layer for increased safety.
Materials:
- Probe Body: Insulation — Gray Santoprene®
- Rubber over Polypropylene.
- Right Angle Sheath Banana Plug:
- Plug Body: Nickel Plated Brass.
- Banana Plug Spring: Nickel Plated Beryllium
- Copper.
- Insulation: Santoprene®
- Wire: 20 AWG, gray silicon rubber 0.089 (2,26mm)
- O.D.
- Probe Tips: Gold plated or Stainless Steel
Технические характеристики
| Manufacturer | Pomona |
|---|---|
| Condition | New |
