| 50Hz AC Input |
| Ten-turn Output Voltage and Current Controls |
| Chassis Slides |
| 115 Vac ±10% Single-Phase Input |
| Voltage and Programming Adjust |
| 115 Vac ±10% Single-Phase Input |
| 208 Vac ±10% Single-Phase Input |
| 230 Vac ±10% Single-Phase Input |
| Resistance Programming Interface (Includes Option 022) |
Additional Features:
- Voltage: 40V
- Current: 10A
- Power: 400W
- Incorporates Separate Meters for easy Monitoring of Output
- Overvoltage Protection Crowbar
- Low peak-to-peak ripple
- Continuously variable output voltage and current-no range switching
- Auto-series, auto-parallel and auto-tracking operation
- Remote programming-voltage and current can be controlled by external resistance or control voltage
- Remote error sensing
- Low output impedance
- Constant voltage constant current operation with automatic crossover
- Fully rated for any overload condition including continuous short circuit operation
- Front panel voltmeter and ammeter
- RFI conformance to MIL-I-6181D

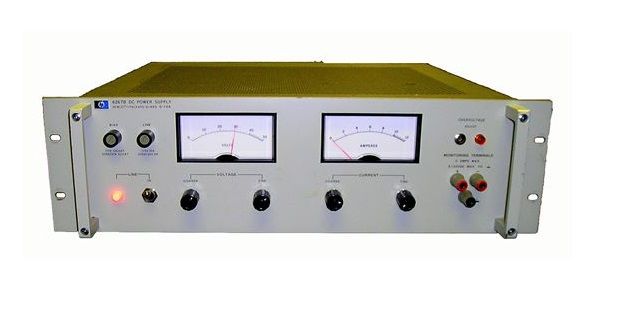

The Agilent HP 6267B employs a transistor series-regulator/triac-preregulator circuit to achieve high efficiency, excellent regulation, low ripple and noise, and moderate programming speeds in a compact full-rack width package.
Additional features include built-in overvoltage crowbar protection: remote error sensing: and auto-series, auto-parallel, and auto-tracking operation. The crowbar trip point adjustment and associated overvoltage indicator are conveniently located on the front panel.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Current | 10 A |
| Voltage | 40 V |
| Power | 400 W |
