Features:
- Frequency range from 10 Hz to 40 GHz (46 GHz with Opt. 005) directly measures in millimeter wave range, without expensive mixers
- Sensitivity to -32 dBm ensures accurate measurement of low-energy signals
- Low kickback noise for sensitive environments, sleep mode reduces noise to -70 dBm
- Fast acquisition time (60 ms in automatic, fast acquisition tracking mode, 20 ms in manual mode) for improved throughput.
- Up to 120 measurements per second (100 in automatic mode) over HP-IB (fully programmable)
- Fast tracking speed allows effortless tracking of source drift to 1 GHz per second, ideal for measuring the response of voltage-controlled oscillator to voltage-source tuning.

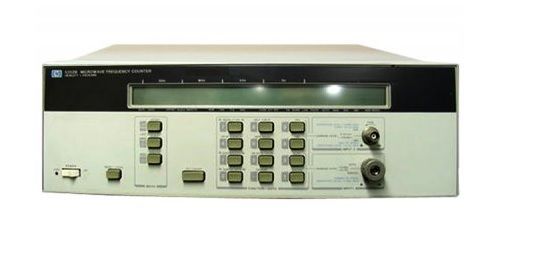

The Agilent 5352B Universal Counter allows precise measurements from 10 Hz to 40 GHz and features microwave components that are integrated on a single hybrid gallium arsenide circuit for added speed and reliability. In addition, this unit has wide frequency coverage, exceptional sensitivity, fast tracking, high measurement throughput, and wide FM tolerance.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Frequency | 40 GHz |
