| High Resolution IR Limits |
| 5mA Output Current |
| 5W Continuity |
| PLC Ready Output |
| 3mA Output Current |
Features:
- Patented SmartGFI® safety circuit protects the operator from shock hazards
- Patented VERI-CHEK® feature prompts users through steps to validate the instrument»s operation
- Patented CAL-ALERT® feature alerts the operator that the tester is due for re-calibration
- Built-in adjustable Continuity test for checking basic continuity
- Graphic LCD provides intuitive menu system to simplify the entire testing process from set-up to results
- PLC Remote Control allows operators to remotely control the Hipot tester
- Remote Safety Interlock feature prevents the high-voltage from being activated without the interlock enabled 10 Memories with 3 Steps per memory for storing and recalling test parameters
- Electronic Ramp and Dwell timers for more consistent and reliable testing
- Interconnects with an Associated Research Ground Bond tester to form a complete test system
- Digitally controlled arc detection circuit allows the operator to program sensitivity levels for detecting arcs
- Minimum and maximum trip settings for safer and more accurate testing
- Comes complete with an adapter box for products terminated in a line cord
Specifications:
- Voltage 115/230 VAC ± 10%, user selectable
- Frequency 50/60 Hz ± 5%
- Fuse 3.15 A, fast acting 250 VAC

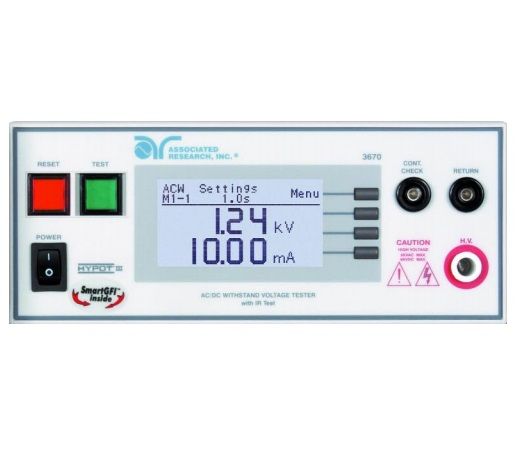

The 3670 is a hipot from Associated Research.
Технические характеристики
| Manufacturer | Associated Research |
|---|---|
| Condition | Used |
