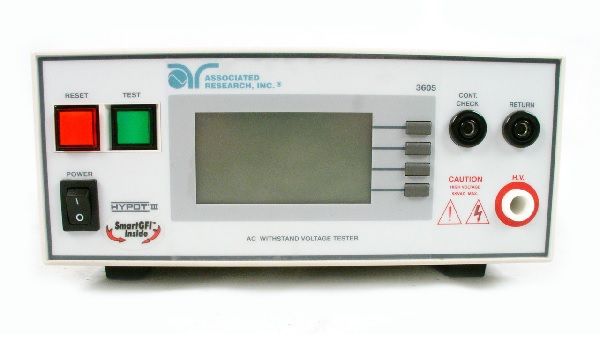

Additional Features:
- 5KV AC Hipot Tester
- Patented SmartGFI® safety circuit protects the operator from shock hazards
- Patented VERI-CHEK® feature prompts users through steps to validate the instrument»s operation
- Patented CAL-ALERT® feature alerts the operator that the tester is due for re-calibration
- Built-in adjustable Continuity test for checking basic continuity
- Graphic LCD provides intuitive menu system to simplify the entire testing process from set-up to results
- PLC Remote Control allows operators to remotely control the Hipot tester
- Remote Safety Interlock feature prevents the high-voltage from being activated without the interlock enabled
- Memories with 3 Steps per memory for storing and recalling test parameters
- Electronic Ramp and Dwell timers for more consistent and reliable testing
- Interconnects with an Associated Research Ground Bond tester to form a complete test system
- Digitally controlled arc detection circuit allows the operator to program sensitivity levels for detecting arcs
- Minimum and maximum trip settings for safer and more accurate testing
- Comes complete with an adapter box for products terminated in a line cord
Input Specifications
- Voltage: 115/230 VAC ± 10%, user selectable
- Frequency: 50/60 Hz ± 5%
- Fuse: 3.15 A, fast acting 250 VAC
Dielectric Withstand Test Mode
Output Rating
- 5000 V @ 20 mA AC, 6000 V @ 7.5 mA DC
Voltage Setting
- Range: 0 — 5.00 KV AC, 0 — 6.00 KV DC
- Resolution: 0.01 KV
- Accuracy: ± (2% of setting + 5 V)
Maximum Limit
- AC Range: 0.00 — 20.00 mA
- Resolution: 0.01 mA
- DC Range: 0 — 7500 μA
- Resolution: 1 μA
- Accuracy: AC and DC ± (2% of setting + 2 counts)
Minimum Limit
- AC Range: 0.000 — 9.999 mA
- Resolution: 0.001 mA
- DC Range: 0.0 — 999.9 μA
- Resolution: 0.1 μA
- Accuracy: AC and DC ± (2% of setting + 2 counts)
Arc Detection
- Range: 0 — 9, 0 disabled
Ground Fault Interrupt
- GFI Trip Current: 450 μA max (AC or DC)
- HV Shut Down Speed: <, 1ms
Current Display Auto Range
- AC Range 1: 0.000 — 3.500 mA
- Range 2: 3.00 — 20.00 mA
- DC Range 1: 0.0 μA — 350.0 μA
- Range 2: 0.300 mA — 3.500 mA
- Range 2: 3.00 mA — 7.50 mA
- Accuracy All Ranges ± (2% of reading + 2 counts)
DC Output Ripple
- ≤5% Ripple RMS at 6 KV DC @ 7.5 mA, Resistive Load
Discharge Time
- <,=200 ms
The maximum capacitive load vs output voltage:
- 0.20 μF <, 1 KV 0.050 μF <, 4 KV
- 0.10 μF <, 2 KV 0.040 μF <, 5 KV
- 0.06 μF <, 3 KV 0.015 μF <, 6 KV
AC Voltage Waveform
- Sine Wave, Crest Factor = 1.3 — 1.5, <,2% THD
Output Frequency
- Range: 50 or 60 HZ, User Selectable
Output Voltage Regulation
- ± (1% of output + 5 V) from no load to full load and over input voltage range.
Dwell Timer
- Range: AC 0, 0.3 — 999.9 sec (0 = Constant)
- DC 0, 0.4 — 999.9 sec (0 = Constant)
- Accuracy: ± (0.1% of reading + 0.05 sec)
Ramp Timer
- Range: Ramp-Up: 0.1 — 999.9 sec
- Ramp-Down: AC 0.0 — 999.9 sec
- DC 1.0 — 999.9 sec (0=OFF)
- Accuracy: ± (0.1% of reading + 0.05 sec)
Ground Continuity Current
- DC 0.1 A ± 0.01 A, fixed
Ground Continuity Maximum Limit, Minimum Limit
- Range: 0.0 Ω — 1.50 Ω
- Resolution: 0.01 Ω
- Accuracy: ± (3% of setting + 0.02 Ω)
Ground Continuity Auto Offset
- Range: 0.0 Ω — 0.50 Ω
- Resolution: 0.01 Ω
- Accuracy: ± (3% of setting + 0.02 Ω)
Insulation Resistance Test Mode
Voltage Setting
- Range: 30 — 1000 VDC
- Accuracy: ± (2% of setting + 5 V)
Resistance Display
- Range: 1 — 9999 MΩ (4 Digit, Auto Ranging)
- Resolution: 500 VDC — 1000 VDC
MΩ MΩ
0.001 1.000 — 9.999
0.01 10.00 — 99.99
0.1 100.0 — 999.9
1 1000 — 9999
Accuracy
- ± (2% of reading +2 counts) at test voltage, 500 — 1000 V and 1 — 999.9 MΩ
- ± (5% of reading +2 counts) at test voltage, 500 — 1000 V and 1000 — 9999 MΩ
- ± (8% of reading +2 counts) at test voltage, 30 — 500 V and 1 — 1000 MΩ
Maximum Limit
- Range: 0, 1 — 9999 MΩ (0=OFF)
- Accuracy: Same as Resistance Display
Minimum Limit
- Range: 1 — 9999 MΩ
- Accuracy: Same as Resistance Display
Ramp Timer
- Range: Ramp-Up: 0.1 — 999.9 sec
- Ramp-Down: 1.0 — 999.9 sec (0=OFF)
- Accuracy: ± (0.1% of reading + 0.05 sec)
Delay Timer
- Range: 0, 0.5 — 999.9 sec (0 = Constant)
- Accuracy: ± (0.1% of reading + 0.05 sec)
Ground Fault Interrupt
- GFI Trip Current: 450 μA max
- HV Shut Down Speed: <, 1 ms
General Specifications
Remote Control & Signal Output
The following input and output signals are provided through two 9 pin D type connectors:
1. Remote control: Test, Reset, and Remote Interlock
2. Remote recall of memory program #1, #2, and #3
3. Outputs: Pass, Fail, Test-in-process, and Reset
- Program Memory: 10 Memories, 3 steps per memory
- Security: Key Lock capability to avoid unauthorized access to all test parameters and memory locations
- Mechanical: Bench or rack mount with tilt up feet
- Dimensions: (W x H x D) 8.46 x 3.5 x 14.57 in. (215 x 89 x 370 mm)
- Calibration: Traceable to National Institute of Standards & Technology (NIST)
- Calibration controlled by software
- Adjustments are made through front panel keypad in a restricted access calibration mode
- Calibration information stored in non-volatile memory
Технические характеристики
| Manufacturer | Associated Research |
|---|---|
| Condition | Used |
