Additional Features:
- Output Range: 0 to 5000 VAC: 0 to 6000 VDC
- Input: 115/230 VAC + 15 %, 47-63 Hz operation
- Meter: digital with 10 V resolution
- Leakage current range: 12 mA AC: 5 mA AC: 5 mA DC
- Accuracy: + 2% of setting + 5 V
- Timer Display: 0.0 to 999.9 s
- Ground continuity check: current DC 0.1 A + 0.01 A, fixed
- Adjustable high and low limit
- Insulation resistance test mode

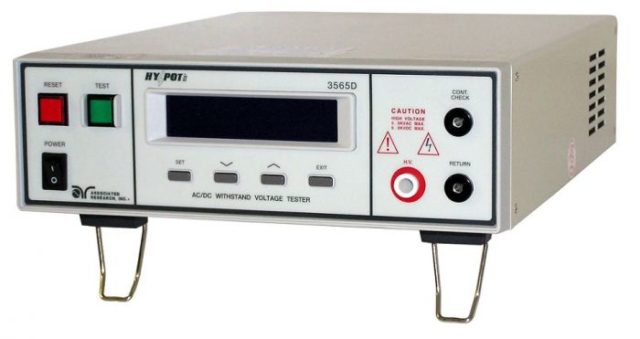

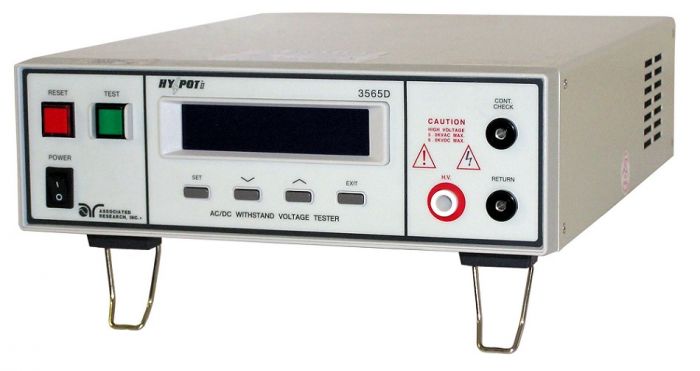

The 3565D is an AC/DC HiPot Tester for performing dielectric withstand tests and measuring insulation leakage currents.
Технические характеристики
| Manufacturer | Associated Research |
|---|---|
| Condition | Used |
