Features
- Quad 4-channel multiplexers
- DC to 3 GHz, 50 Ohm
- High isolation, low VSWR
- 30V, 0.5A, 10W switching
- SMA connectors

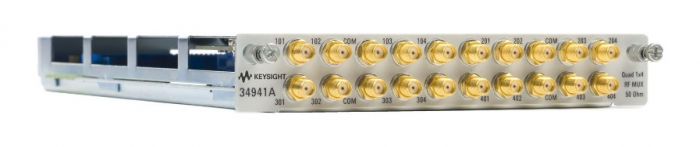

The Keysight 34941A RF multiplexer module for the 34980A Multifunction Switch/Measure Unit offers bi-directional switching for test signals from DC to 3 GHz. High channel isolation ensures quality dynamic range measurements with your oscilloscope, spectrum analyzer, or other instrumentation. The RF multiplexers are configured as four independent 1×4 RF multiplexers on a single module. Individual multiplexers are isolated from each other and the Mainframe chassis to prevent ground loops. Multiple banks can be cascaded together to create an even large multiplexer — up to 97 cascaded RF channels in a single 34980A mainframe.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
