Additional Features:
- Miniature Banana Plug With Threaded Stud
- “X” Dimension: 3276 = .23” (5,8mm), 4513 = .48” (12,2mm)
- Threaded stud enables fast and easy mounting to panels
- Solder turret allows wire attachment
- Miniature banana plug spring features gold plated Beryllium Copper for long insertion life and low contact resistance
Materials:
- Miniature Banana Plug: Spring – Beryllium Copper, Gold Plated
- Body: Brass, Gold Plated
- Hex Nut: 4-40 Nut, Brass, Nickel Plated
Ratings:
- Operating Voltage: 2500 VDC
- Current: 5 Amperes Max.
Applications:
- Test & Measurement

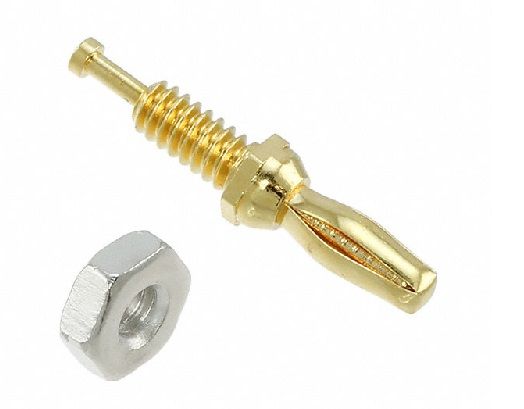

The Pomona 3276 is a miniature Banana Plug with threaded stud. Threaded stud enables fast and easy mounting to panels. Solder turret allows wire attachment. Miniature banana plug spring features gold plated beryllium copper for long insertion life and low contact resistance.
Технические характеристики
| Manufacturer | Pomona |
|---|---|
| Condition | New |
