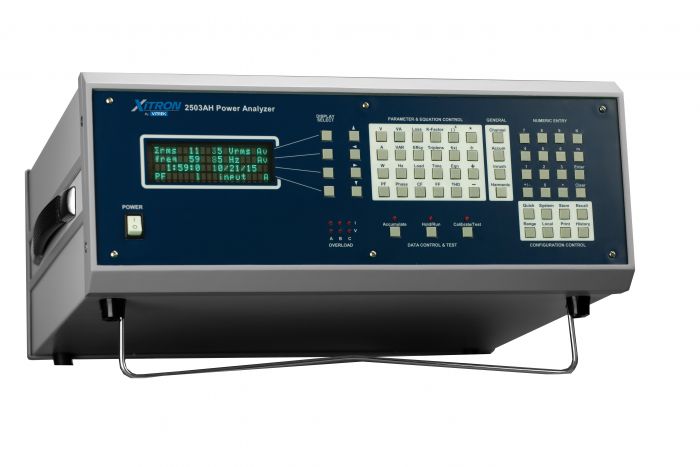

XiTron 2503AH-3CH 2503AH Three-Channel Power Analyzer

Features:

• Three-channel power analyzer
• 18-bit, 500 kHz sampling speed provides 0.05% basic accuracy
• Ultrafast FFT’s per channel produce measurements in 10ms
• 3000 V Peak, 50 Amp Peak measurable with internal shunt and optional internal Hall effect CTs
• Pre-configured for ballast, motor, power supply and appliance tests
• Real-time, ultra-fast, harmonic analysis
• Application Specific Configurations
• External CT and PT capability ratio: 0.000001- 1000000 to 1, for A/V, A/A or V/V
• Frequency Measurement: 500 μHz to 170kHz, 0.01% of reading
• Measurement Period: User defined from 1 mSec to 27.8 hours
• Watt, VA & VAR accuracy highest of V* Amp error or Amp* V error yields max. error for either Watts, VA, or VAR

The 2503AH Analyzers measure power, voltage, and current up to 500 kHz with premier precision. Available parameters include V, A, W, Power Factor, Crest Factor, K Factor, THD, Harmonics, Phase, VA, VAR, W.Hr, Triplens, Impedance, Inrush, Mean-Peak Values, EfficiencyLoss, etc. 2503AH high-performance Power Analyzers are among the most accurate available. Perfect for motor lighting, power conversion, and appliance test and development applications.

The following characteristics are available with the three-channel power analyzer’s capabilities:

• Can measure 3 voltage and 3 current inputs simultaneously.
• Can measure AC and DC signals. For simultaneous measurements, use one channel for the DC signal and a remaining channel for high frequency AC.
• Can measure from DC to a fundamental frequency of 163kHz, a 500kHz bandwidth. This measurement includes the harmonic data contained within the frequency.
• Can have two or all three-channel inputs asynchronous or grouped to be synchronous with respect to each other. Synchronous channel grouping allows for performing a 3-phase, 3-wire, 2-wattmeter method, a 3-phase, 3-wire 3-wattmeter method, and a 3-phase 4-wire method with the ability vto measure the phase between channels.
• Can allow for added capacity to make efficiency measurements.
