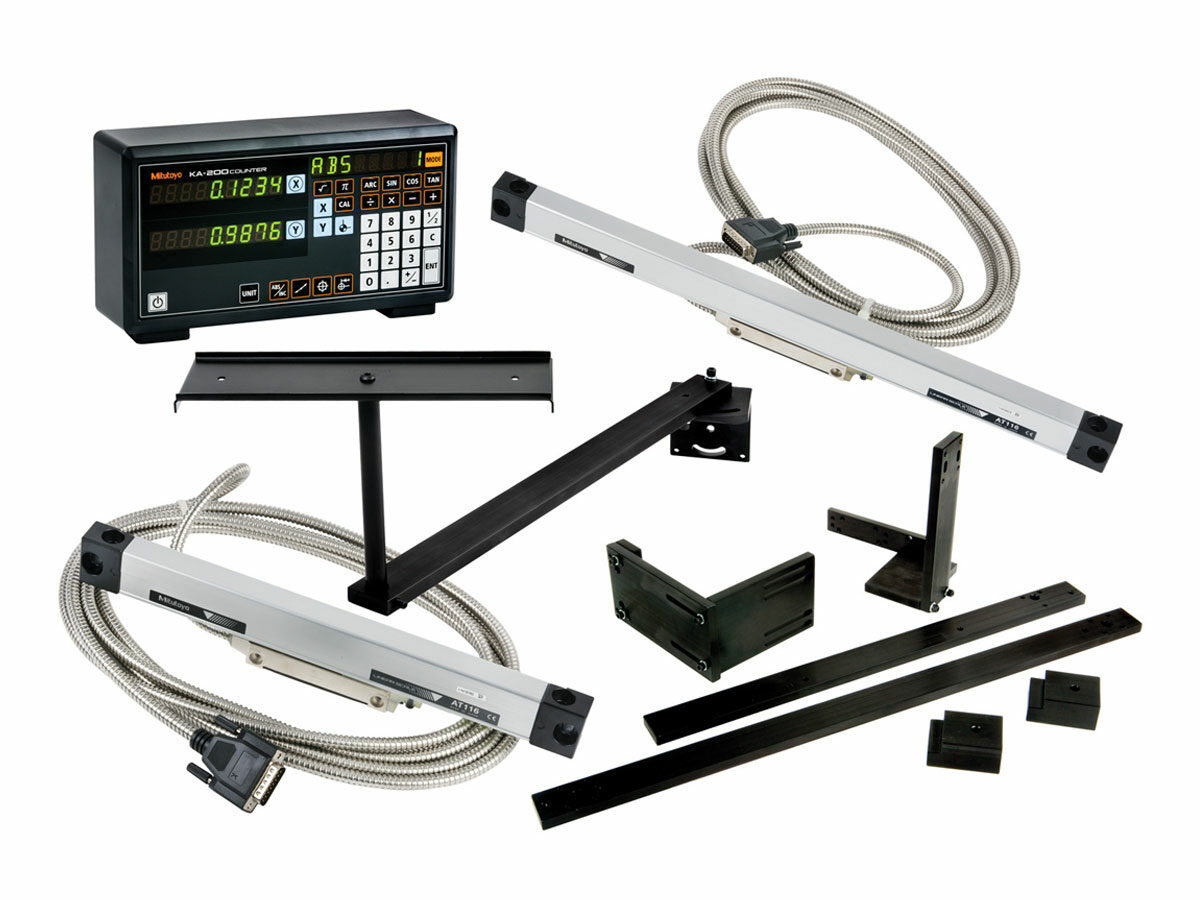

The Mitutoyo 2-axis retrofit grinding package utilizes a KA-200 digital readout with glass linear scales in several different X- and Y-axis travel lengths on manual grinding machines. The KA-200 features ABSOLUTE and incremental modes with nine presets each. The AT116 slim spar type glass linear scales provides automatic displacement measurements.
- Includes KA-200 digital counter, AT116 slim spar glass linear scales, linear scale brackets and display arm kit
- KA-200 counter can output RS-232C data to a PC, printer or PLC using an optional code out unit (#09AET993)
- The AT715 electromagnetic linear scales with IP67 rating is available in replacement of AT 116 glass linear scales
- Comes with 5 year warranty
| Order No.: | Product Image: | Dimensions: | X-Axis Travel: | Z-Axis Travel: | |
|---|
| 64PKA026A | — | 6×12″ | 6″ | 12″ |
| 64PKA027A | — | 6×14″ | 6″ | 14″ |
| 64PKA028A | — | 8×12″ | 8″ | 12″ |
| 64PKA029A | — | 8×14″ | 8″ | 14″ |
| 64PKA030A | — | 8×16″ | 8″ | 16″ |
| 64PKA031A | — | 10×18″ | 10″ | 18″ |
| 64PKA032A | — | 10×24″ | 10″ | 24″ |
| 64PKA033A | — | 12×18″ | 12″ | 18″ |
| 64PKA034A | — | 12×20″ | 12″ | 20″ |
| 64PKA026A |
| 64PKA027A |
| 64PKA028A |
| 64PKA029A |
| 64PKA030A |
| 64PKA031A |
| 64PKA032A |
| 64PKA033A |
| 64PKA034A |
Технические характеристики
| Type: | Grinder Package |
|---|
| X-Axis Type: | AT116 |
|---|
| Z-Axis Type: | AT116 |
|---|
