Features:
Logic analyzer configuration
- 102 channels, 350 MHz state, 12.5 GHz timing zoom, 2.5 GHz timing, 2 Mb depth standard
- 15-inch (38.1 cm) color, touch-screen display for viewing and quickly navigating large numbers of signals and buses
- Built-in removable SSD drive, USB 3.0 ports and LAN for fast data transfer and storage of large amounts of data
- 1.4 GHz trigger sequencer to ensure high-speed events are captured
Timing analysis (asynchronous sampling)
- Up to 2.5 GHz/5.0 GHz (full-/half-channel) timing for capturing signal activity at high resolution
- Up to 128 Mb/256 Mb (full-/half-channel) deep memory for identifying the root cause of a problem and symptom widely separated in time
- 12.5 GHz (80 ps) timing zoom with 256 K memory depth for analysis of the trigger event with high resolution
State analysis (synchronous sampling)
- State data rates up to 1.4 Gb/s, state clock rates up to 700 MHz for high-speed data capture
- Automated threshold/sample position setup for accurate measurements on high-speed buses
- Simultaneous eye diagrams on all channels for quick identification of problem signals
- Configuration considerations (probes and additional software ordered separately)
- Select from a wide variety of single-ended and differential general purpose and application-specific probes
- Add application software for insight to debug, analyze and optimize your system»s operation
- Purchase the speed and memory depth capability you need today and upgrade as your needs evolve. Use 16863AU to upgrade an existing 16863A
Specifications:
- 102 Channel

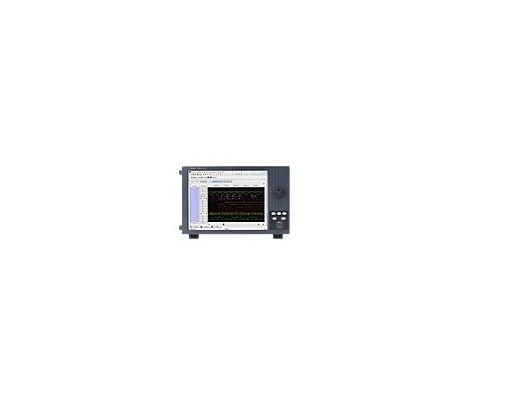

The 16863A portable logic analyzer provides the industry»s fastest, deep memory timing capture for digital debug.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
| Channels | 102 |
