Additional Features:
- Output Voltage 1-19.99 VDC
- Output Current 0-9.99 A
- Load Regulation: 0.5%+200 mV
- Line Regulation: 50 mV
- Ripple & Noise: 20 mVpp
- Voltmeter Accuracy: 1%+2 counts
- Ammeter Accuracy: 0.5%+2 counts
- Input Voltage: 100-240 VAC, 50/60 Hz
- Constant voltage (CV) operation
- Constant current (CC) operation (current limiting)
- Bright easy-to-read LED displays
- Overvoltage protection
- Dimension (W x H x D): 8” x 4.5” x 11” (205 x 115 x 275 mm)
- Included Accessories: Power cord & instruction manual
- One-Year Warranty

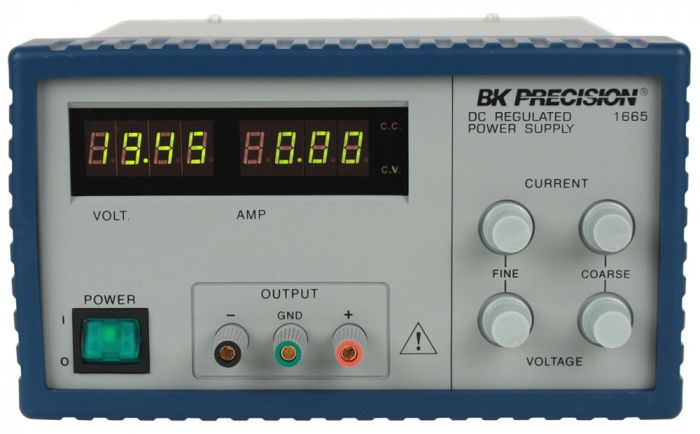

The BK 1665 switching DC power supply uses new switching technologies to offer more power at a lower cost than traditional linear power supplies. It provides coarse and fine output voltage and current controls and current limiting control with automatic crossover of constant voltage (CV) and constant current (CC) indicators, which makes this series ideal for research and development work in laboratories.
Технические характеристики
| Manufacturer | BK Precision |
|---|---|
| Condition | New |
| Current | 10 A |
| Voltage | 20 V |
| Power | 200 W |
