Additional Features:
- Output Power: 120VA
- Frequency Range: 45 Hz-5 kHz
- Output Voltage Range: 0-130, 0-260
- Line Regulation: ±0.25% at ±0.7 power factor
- Continuous duty at 100% of rated capacity

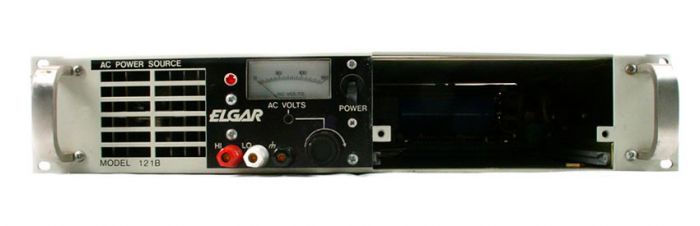

Elgar 121B power sources are wide range, solid-state linear amplifiers that convert the incoming line to low distortion, stable sine wave power.
These solid-state frequency changers are benchtop/19″ rackmount units that can be driven over their full voltage and frequency ranges by fixed, variable or programmable plug-in oscillators. The 121B offers overload and overtemperature protection, can operate continuously at up to 150% rated capacity.
The linear design of the B Series provides a highly regulated, clean sine wave, making these units ideal for linear loads in general purpose test applications as well as for Automatic Test Equipment systems and avionics testing.
Технические характеристики
| Manufacturer | Elgar |
|---|---|
| Condition | Used |
| Amps | 1.1 A |
| Frequency | 5 kHz |
| Phase | 1 |
| Power (VA) | 120 VA |
| Volts | 32 V |
