Additional Features:
- Constant Voltage/Constant Current
- Built-in RS-232 & RS-485 Interface
- An embedded Microprocessor controller
- Digital Encoder Knob
- Software Calibration
- Last Setting Memory
- Parallel Operation (Master/Slave) Active Current Sharing
- External Voltage or Resistance Programming
- Active Power Factor Correction: 99%
- 85~265Vac Universal Input Voltage
- 19″ Rack Mounted ATE and OEM
- Worldwide Safety Agency Approvals
- CE Mark for LVD and EMC Regulation
Applications
- Industrial
- Test
Specifications:
- Output Voltage Range: 0-36 V
- Output Current Range: 0-24 A
- Maximum Power: 864 W
- Ripple 5 Hz-1 MHz: 5 mV
- Noise 20 MHz BW: 70 mV
- Ripple 5 Hz-1 MHz: 30 mA
- Efficiency (100/200 VAC): 80/84 %
- Load Regulation: 2mV + 0.005% over 0 — 100% load change
- Line Regulation: 1mV + 0.005% over 85 — 132 or 170 — 265VAC line change
- Recovery Time: 0.2ms
- Temperature Coefficient: 30ppm/°C following 30 minute warm up
- Temperature Drift: 0.01% + 2mV change in output
- Up programming response time: 50 — 60ms
- Down programming response time (CV): 50ms
- Load Regulation: 0.07% + 10mA on 800W models
- Line Regulation: 0.01% + 5mA on 800W models
- Temperature Coefficient: 100ppm/°C from rated current after 30 minute warm up time
- Temperature Drift: 0.05% + 10mA 800W models
- Prog Voltage resolution: Better than 0.028% of rated voltage
- Prog Voltage accuracy: .02%+20mV
- Prog Current resolution: Better than 0.03% of rated output current
- Prog Current accuracy: 0.4% + 40mA
- Overvoltage Shutdown: 0-40
- Thermal Protection: Over temperature protected
- Display — Voltage: 3 digits
- Display — Status: CV / CC, Alarm, Foldback, Local/Remote, On/Off
- Remote On/Off: TTL signal or dry contact relay
- Output Good: Open Collector
- Voltage & Current Programming: By either Voltage (0-4V) or Resistance (0-4k)
- Remote Sense: Up to 0.5V compensation per output cable
- Communication Interface: RS232 & RS485 standard, IEEE488 optional
- Series & Parallel Operation: Series: Up to two units, Parallel: Up to five units in master-slave configuration
- AC Input Voltage range: 85-265VAC (47-63Hz)
- Inrush Current (100/200VAC): 30A
- Hold Up Time (Typ) at 100VAC: 20 ms
- Power Factor Correction: Complies with EN61000-3 Class A (0.99 typ)
- Temperature Range: Operating: 0 — 50°C, Storage: -20 to +70°C
- Humidity (non condensing): Operating: 30 — 90% RH, Storage 10 — 95%RH
- Cooling: Internal fan
- Withstand Voltage: Input to Ground 2kVAC, Input to Output 3kVAC, Output to Ground 500VAC for 1 min
- Isolation Resistance: >,100M at 25°C & 70% RH
- Vibration & Shock (non-op.): Vibration:10-55 Hz(1 min.) 2G constant X, Y, Z, when correctly mounted, Shock: <,20G
- Safety Agency Approvals: UL3111-1, EN61010-1, CE Mark
- Conducted & Radiated EMI: EN55022-B conducted, A radiated, FCC Class B conducted, A radiated, VCCI-2 conducted, -1 radiated

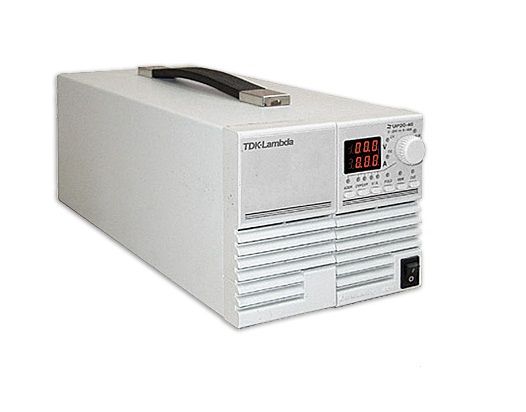

The TDK Lambda ZUP36-24 is a 0-36 V, 0-24 A Zero up programmable DC Power Supply with an output power of 864 Watts. The ZUP36-24 is perfect for Industrial and Test applications.
Технические характеристики
| Manufacturer | Lambda |
|---|---|
| Condition | Used |
| Current | 24 A |
| Voltage | 36 V |
| Power | 864 W |
