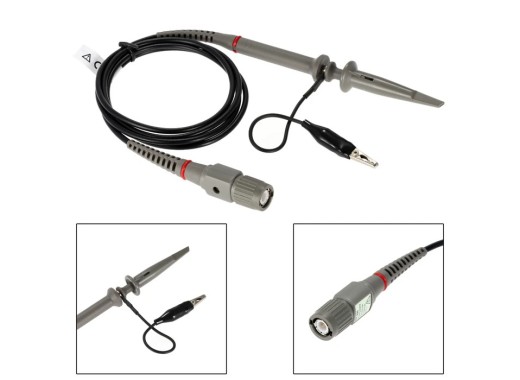

The Hantek PP200 is a simple, passive, low-impedance 200 MHz probe suited for a variety of applications. The attenuation can be selected to either 1x or 10x. The probe is calibrated for use in devices with an input impedance of 1M paralleled by 20 pF.
Specifications Attenuation 1x or 10x Input Impedance1MΩ/85pF-115pF (1x), 10MΩ/18,5pF-22,5pF (10x) Max input voltage600 V Bandwidth1x: 5MHz, 10x up to 200MHz Probe body length95 mm Cable length1200 mm Weight55 g
