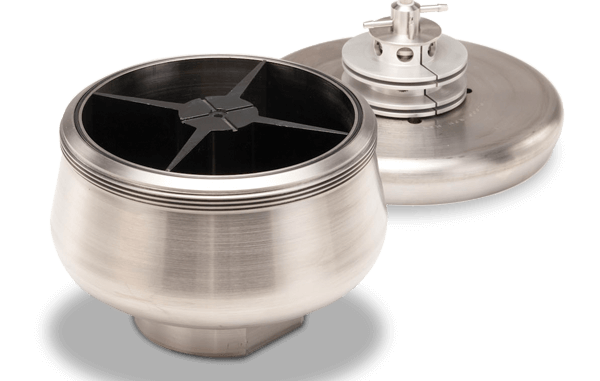

JCF-Z Zonal Rotor, Titanium. Includes Zonal core, standard-flow rotating seal assembly, and tool kit. Bracket kit required for use with Avanti J Series centrifuges, and pump system required for all applications.
When density gradient separation is performed in a zonal rotor, gradient and sample are loaded directly into the rotor cavity, no tubes or bottles are used (Figure 1.2). Cylindrical or bowl-shaped zonal rotors have a capacity 50 to 100 times that of the typical swinging bucket rotor, thus zonal centrifugation enables large quantities of sample to be processed in much less time than in other types of rotors.
Major Applications: Tissue homogenates, small or large viruses, chloroplasts, bacteria, algae, whole cells.
For use in Avanti J Series (except Avanti J-E) or the discontinued J2 Series (except J2-HC) centrifuges.
Технические характеристики
| Platform | Avanti |
| Rotor Type | Specialty |
| Maximum RPM | 20,000 rpm |
| k-Factor | 710 |
| Nominal Capacity | 1900 mL |
| Materials | Titanium |
