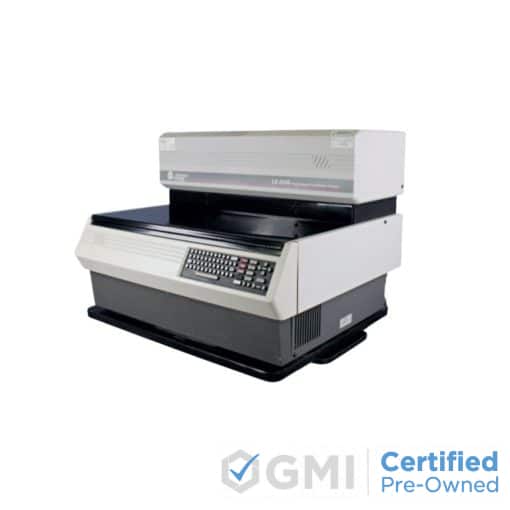

Жидкостный сцинтилляционный счетчик Beckman Coulter LS6500

Product Description 32,768-Channel Multichannel Analyzer Advanced Photomultiplier Design Interlocking Lead Shielding User-Selectable Output Format GMI offers a full line of counting cocktails Includes Full Service Installation & Basic User Training Includes LS6500 liquid scintillation counter, Choice of 15 vial racks for either standard or minivials, Monitor, printer, and complimentary professional installation. The Beckman LS-6500 systems is equipped with a 32,678 channel analyzer that delivers an effective resolution of 0.06 keV for accurate results across a variety of samples. A patented H-Number Plus external quench monitor (H-Number Plus) fitted into the system provides accurate disintegrations per minute (DPM) calculations and Automatic Quench Compensation. Both measurements are independent of sample volume or cocktail composition. The feature is also the basis for instrument calibration, color detection and correction, two-phase monitoring, unquenched window determination and multi-label DPM quench curves. Instead of lowering the compartment to the sample chamber, the LS 6500 counter raises the sample plastic racks to the sample chamber. This design prevents possible contamination of the chamber with dust or liquid residue. As for system operations, the combination of easy-to-use menus, context-sensitive help screens and 50 user programs makes the LS 6500 a one-button system. The System Plus and System Advantage models are equipped with powerful analysis tools. Units come with a single or dual label DPM, an exclusive H-Number Plus quench monitor as well as the Versa-Rack vial system which allows mixing of 20 mL and 7 mL vials. Enhancement packs and other features can be added later to address emerging laboratory needs. Instrument has capacity for 336 standard vials (20 mL), or 648 mini-vials (7 mL) or combination thereof. Specifications Resolution 32,768 channels, 0.06 keV per channel Reproducibility +/- 1% Counting Efficiency Maximum Count Rate Total Singles: 26 x 10^6 CPM 3H Window: 10 x 10^6 CPM 14C Window: 13 x ^6 CPM Above 14 C Window: 5 x ^6 CPM Power Requirements 120 / 240V / BTU HR with 50/60 Hz Instrument 3A / 1.5A / 1230 Temperature 7.5A / 3.8A / 3060 Inrush Current 5A at 120V, 2.5A at 240V Power Failure Recovery System returns to a disrupted Automatic Count with fully charged battery Dimensions (W x H x D / Weight) Instrument: 91.4 x 67.3 x 80 cm / 210 kg Refrigeration Acc.: 35.5 x 56 x 73.7 cm / 45.4 kg Printer: 39 x 10 x 30.5 cm / 5 kg Ambient Temperature Range 15 35C Maximum Relative Humidity 85% Ambient Temperature Range 15C to 30C Maximum Pull Down Time 8 Hours Set Point 1 12C +3C Set Point 2 15C +3C Set Point 3 18C +3C Efficiency 2H: &gt,/= 60% in a wide window 14C: &gt,/= 95/5 in a wide window

Технические характеристики
