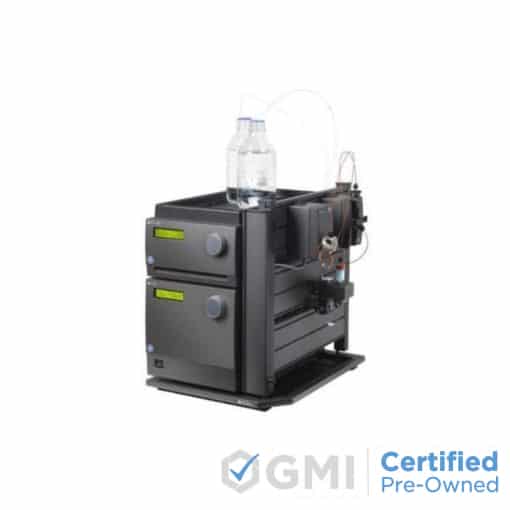

Product Description AKTA FPLC biomolecule purification system with, Monitor UPC-900 -measures UV and temperature compensated conductivity and pH in a single instrument (pH function is an optional configuration), Pump P-920 flow rates up to 20ml/min, Frac 900, Computer with control and data analysis software. GE KTA FPLC Fast Protein Liquid Chromatograph Specifications Parameter Value Fast rate range 0.5-20 ml/min Pressure Range 0-5 MPa (50 bar 725 psi) Wavelength Selection 254 280 313 405 436 546 nm (with the Hg Lamp) 214 nm (with the Zn Lamp) Conductivity Range 1&mu,S/cm-999.9 mS/cm (RPC- IEX- HIC gradients) pH Range 0-14 Solvent Compatibility All solvents and buffers commonly used in chromatography of biomolecules except 100% hexabe abd 100% tetahydrofuran (organic solvents are pottentially harmful to pH electrodes usea dummy flow cell when running organic solvents) Size 380 x 480 x 470 mm (W x D x H) Weight 50 kg
Технические характеристики
Technical Specifications
| Parameter | Value |
| Fast rate range | 0.5-20 ml/min |
| Pressure Range | 0-5 MPa (50 bar 725 psi) |
| Wavelength Selection | 254 280 313 405 436 546 nm (with the Hg Lamp) 214 nm (with the Zn Lamp) |
| Conductivity Range | 1μS/cm-999.9 mS/cm (RPC- IEX- HIC gradients) |
| pH Range | 0-14 |
| Solvent Compatibility | All solvents and buffers commonly used in chromatography of biomolecules except 100% hexabe abd 100% tetahydrofuran (organic solvents are pottentially harmful to pH electrodes usea dummy flow cell when running organic solvents) |
| Size | 380 x 480 x 470 mm (W x D x H) |
| Weight | 50 kg |
