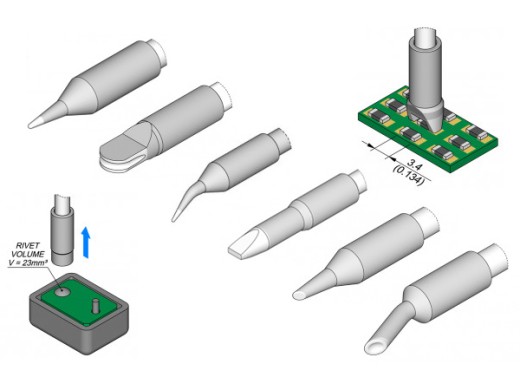

The JBC C245 series soldering tips offers a very wide range of tips, of which a short overview is made below. For more information you can consult the soldering tips guide.

These C245 soldering tips are suitable for the JBC BT-2BWA soldering station, 140Watt and the JBC CD-2BQF soldering station, 130 Watt with a T245 soldering iron.

Depending on your purpose, the right tip can simplify the soldering process. For SMD soldering a fine tip is suitable, but to heat larger surfaces a wider tip is necessary. We can supply all tips from the JBC catalogue. If the tip you wish does not appear on this page, please let us know and we will add it for you.

JBC soldering tips have a long life span, and thanks to the JBC heating system they last up to 5 times longer than tips from competing brands.

You can select the type of tip you want to buy in the top right corner. The different models are described below. Some models have a longer marker to make it easier to get to tips that are more difficult to reach. This is indicated in the row of connection pieces with normal length and longer lengths, where normal means that there is no length addition and longer has a 20 mm longer pin.

Quick navigation
Conical

Conical bent

Chisel

Chisel bent

Bevel

Bevel bent

Spoon

Barrel

Round connector

Knife

Blade

Chip

Drag

Dual in line

QFP/PLCC

PLCC socket

Solder pot

Heat stacking

Conformal coating removal

Cutter

Customized

Conical ModelDiameter tip (mm)Tip lengthPriceStock C245-0300.3Normal 26.37 €26.37 Excl. VAT C245-2300.3Longer 32.87 €32.87 Excl. VAT C245-0320.4Normal 26.37 €26.37 Excl. VAT C245-0360.5Normal 26.37 €26.37 Excl. VAT C245-9300.5Normal 26.9 €26.90 Excl. VAT C245-0010.6Normal 26.9 €26.90 Excl. VAT C245-2010.6Longer 32.87 €32.87 Excl. VAT C245-937 (HT)0.7Normal 26.9 €26.90 Excl. VAT C245-9570.8Normal 26.9 €26.90 Excl. VAT C245-9031.0Normal 26.37 €26.37 Excl. VAT C245-736E1.0Normal 30 €30.00 Excl. VAT C245-8031.0Longer 32.87 €32.87 Excl. VAT C245-041 (TS)1.0Normal 26.9 €26.90 Excl. VAT C245-403 (HT)1.0Normal 26.9 €26.90 Excl. VAT C245-9431.7Normal 26.9 €26.90 Excl. VAT C245-9332.2Normal 26.9 €26.90 Excl. VAT C245-107 (HT)3.0Normal 26.9 €26.90 Excl. VAT

Conical bent ModelDimensions tip (mm)Tip lengthPriceStock C245-0340.4 x 8.0Normal 26.9 €26.90 Excl. VAT C245-2340.4 x 8.0Longer 32.87 €32.87 Excl. VAT C245-0290.4 x 9.5Normal 26.37 €26.37 Excl. VAT C245-1260.4 x 16.0Normal 26.37 €26.37 Excl. VAT C245-7860.4 x 14.0Normal 26.9 €26.90 Excl. VAT C245-9290.6 x 9.5Normal 26.37 €26.37 Excl. VAT C245-9350.8 x 13.0Normal 26.9 €26.90 Excl. VAT C245-9041.0 x 9.5Normal 26.9 €26.90 Excl. VAT C245-909E1.0 x 9.5Normal 30 €30.00 Excl. VAT C245-8041.0 x 9.5Longer 32.87 €32.87 Excl. VAT C245-2591.5 x 11.0Normal 32.87 €32.87 Excl. VAT C245-260 (HT)2.0 x 10.0Normal 32.87 €32.87 Excl. VAT C245-6273.0 x 11.5Normal 32.87 €32.87 Excl. VAT C245-628 (HT)4.0 x 11.5Normal 32.87 €32.87 Excl. VAT

Chisel ModelDimensions tip (mm)Tip lengthPriceStock C245-7310.6 x 0.3Normal 26.37 €26.37 Excl. VAT C245-773 (HT)0.8 x 0.3Normal 26.9 €26.90 Excl. VAT C245-673 (HT)0.8 x 0.3Longer 32.87 €32.87 Excl. VAT C245-159E0.8 x 0.4Normal 29.89 €29.89 Excl. VAT C245-742 (HT)0.8 x 0.6Normal 26.9 €26.90 Excl. VAT C245-1701.0 x 0.5Normal 26.9 €26.90 Excl. VAT C245-7741.2 x 0.3Normal 26.37 €26.37 Excl. VAT C245-158E1.2 x 0.4Normal 29.89 €29.89 Excl. VAT C245-9061.2 x 0.7Normal 26.37 €26.37 Excl. VAT C245-8061.2 x 0.7Longer 32.87 €32.87 Excl. VAT C245-406 (HT)1.2 x 0.7Normal 26.9 €26.90 Excl. VAT C245-7681.5 x 0.3Normal 26.37 €26.37 Excl. VAT C245-1711.8 x 0.5Normal 26.9 €26.90 Excl. VAT C245-160E1.6 x 0.5Normal 29.89 €29.89 Excl. VAT C245-9441.8 x 0.8Normal 26.37 €26.37 Excl. VAT C245-8441.8 x 0.8Longer 32.87 €32.87 Excl. VAT C245-9072.2 x 1.0Normal 26.37 €26.37 Excl. VAT C245-8072.2 x 1.0Longer 32.87 €32.87 Excl. VAT C245-407 (HT)2.2 x 1.0Normal 26.37 €26.37 Excl. VAT C245-770 (HT)2.4 x 0.3Normal 26.9 €26.90 Excl. VAT C245-759 (HT)2.4 x 0.5Normal 26.37 €26.37 Excl. VAT C245-741 (HT)2.4 x 0.6Normal 26.37 €26.37 Excl. VAT C245-155E2.4 x 0.8Normal 29.89 €29.89 Excl. VAT C245-7292.7 x 1.0Normal 26.9 €26.90 Excl. VAT C245-0613.0 x 1.0Normal 26.37 €26.37 Excl. VAT C245-2613.0 x 1.0Longer 32.87 €32.87 Excl. VAT C245-161E3.2 x 0.8Normal 29.89 €29.89 Excl. VAT C245-911 (HT)3.2 x 1.2Normal 26.37 €26.37 Excl. VAT C245-811 (HT)3.2 x 1.2Longer 32.87 €32.87 Excl. VAT C245-7753.2 x 1.2Longer 26.9 €26.90 Excl. VAT C245-755 (HT)4.0 x 0.8Normal 26.37 €26.37 Excl. VAT C245-756 (HT)4.8 x 1.0Normal 26.9 €26.90 Excl. VAT C245-908 (HT)4.8 x 1.5Normal 26.37 €26.37 Excl. VAT C245-808 (HT)4.8 x 1.5Longer 32.87 €32.87 Excl. VAT C245-708 (HT)4.8 x 1.5Longer 26.9 €26.90 Excl. VAT C245-967 (HT)5.0 x 1.0Normal 26.9 €26.90 Excl. VAT C245-069 (E/Robot)5.0 x 1.7Normal 26.9 €26.90 Excl. VAT C245-966 (HT)6.6 x 1.8Normal 26.37 €26.37 Excl. VAT C245-866 (HT)6.6 x 1.8Longer 32.87 €32.87 Excl. VAT

Chisel bent ModelDimensions tip (mm)Tip lengthPriceStock C245-9621.2 x 0.7Normal 26.9 €26.90 Excl. VAT C245-8621.2 x 0.7Longer 32.87 €32.87 Excl. VAT C245-9631.8 x 0.8Normal 26.9 €26.90 Excl. VAT C245-8631.8 x 0.8Longer 32.87 €32.87 Excl. VAT C245-9462.2 x 1.0Normal 26.9 €26.90 Excl. VAT C245-8462.2 x 1.0Longer 32.87 €32.87 Excl. VAT C245-7323.2 x 1.5Normal 26.9 €26.90 Excl. VAT C245-761 (twisted)3.0 x 1.0Normal 26.9 €26.90 Excl. VAT

Bevel ModelDiameter tip (mm)Tip lengthPriceStock C245-7470.6Normal 26.9 €26.90 Excl. VAT C245-7101.2Normal 26.37 €26.37 Excl. VAT C245-064 (RTS)1.3Normal 26.9 €26.90 Excl. VAT C245-9051.5Normal 26.9 €26.90 Excl. VAT C245-405 (HT)1.5Normal 26.9 €26.90 Excl. VAT C245-102 (RTS)2.0Normal 26.9 €26.90 Excl. VAT C245-9452.2Normal 26.37 €26.37 Excl. VAT C245-8452.2Longer 32.87 €32.87 Excl. VAT C245-156E2.4Normal 29.89 €29.89 Excl. VAT C245-7952.5Longer 38.23 €38.23 Excl. VAT C245-784 (RTS)2.8Normal 26.9 €26.90 Excl. VAT C245-793 (RTS)2.8Normal 26.9 €26.90 Excl. VAT C245-9123.0Normal 26.9 €26.90 Excl. VAT C245-8123.0Longer 32.87 €32.87 Excl. VAT C245-056 (HT)3.5Normal 26.37 €26.37 Excl. VAT C245-256 (HT)3.5Longer 32.87 €32.87 Excl. VAT C245-354E3.5Longer 29.89 €29.89 Excl. VAT C245-797 (RTS)3.8Normal 27.16 €27.16 Excl. VAT C245-951 (HT)3.8Normal 26.9 €26.90 Excl. VAT C245-7665.0Normal 26.9 €26.90 Excl. VAT C245-3018.8Normal 49.81 €49.81 Excl. VAT

Bevel bent ModelDiameter tip (mm)Tip lengthPriceStock C245-7480.6Normal 37.86 €37.86 Excl. VAT C245-749 (twisted)0.6Normal 37.86 €37.86 Excl. VAT

Spoon ModelDiameter tip (mm)Tip lengthPriceStock C245-9651.9Normal 36.86 €36.86 Excl. VAT C245-067 (mini)2.3Normal 36.86 €36.86 Excl. VAT C245-9312.7Normal 36.13 €36.13 Excl. VAT C245-938 (mini)3.8Normal 36.13 €36.13 Excl. VAT

Barrel ModelDiameter tip (mm)Tip lengthPriceStock C245-7900.8Normal 32.23 €32.23 Excl. VAT C245-7851.5Normal 32.87 €32.87 Excl. VAT C245-7632.5Normal 32.87 €32.87 Excl. VAT C245-7603.5Normal 32.23 €32.23 Excl. VAT

Round connector ModelDimensions tip (mm)Tip lengthPriceStock C245-1221.5 x 0.5Normal 36 €36.00 Excl. VAT C245-7626.7 x 1.8Normal 34 €34.00 Excl. VAT C245-6626.7 x 1.8Longer 43 €43.00 Excl. VAT

Knife ModelDimensions tip (mm)Tip lengthPriceStock C245-7890.3 x 3.8Normal 32.87 €32.87 Excl. VAT C245-9416 x 0.1Normal 31 €31.00 Excl. VAT C245-9390.4 x 6.0Normal 32.23 €32.23 Excl. VAT C245-7650.4 x 6.0Normal 32.87 €32.87 Excl. VAT C245-9406 x 0.1Normal 31 €31.00 Excl. VAT C245-157E0.1 x 7.2Normal 36.86 €36.86 Excl. VAT C245-9550.5 x 13.0Normal 44.83 €44.83 Excl. VAT

Blade ModelDimensions tip (mm)Tip lengthPriceStock C245-72810.1 x 2.1Normal 48 €48.00 Excl. VAT C245-7994.5 x 0.4Normal 46 €46.00 Excl. VAT C245-73010.0 x 1.2Normal 54.79 €54.79 Excl. VAT C245-91410.0 x 2.4Normal 46.82 €46.82 Excl. VAT C245-75215.0 x 2.2Normal 46.82 €46.82 Excl. VAT C245-91321.0 x 2.4Normal 46.82 €46.82 Excl. VAT C245-94932.0 x 2.4Normal 54.79 €54.79 Excl. VAT C245-77637.0 x 2.4Normal 84.68 €84.68 Excl. VAT C245-79240.0 x 2.4Normal 84.68 €84.68 Excl. VAT

Chip ModelDimensions tip (mm)Tip lengthPriceStock C245-7571.25 — 3.2 x 1.5Normal 36.86 €36.86 Excl. VAT C245-0162.0 — 4.7 x 1.6Normal 36.86 €36.86 Excl. VAT C245-7582.0 — 4.3 x 2.5Normal 36.86 €36.86 Excl. VAT C245-0172.2 — 5.4 x 1.6Normal 36.86 €36.86 Excl. VAT C245-1502.3 — 5.5 x 1.6Normal 36.86 €36.86 Excl. VAT C245-0183.5 — 6.2 x 1.8Normal 36.86 €36.86 Excl. VAT C245-0194.6 — 7.2 x 2.2Normal 36.86 €36.86 Excl. VAT C245-6582.0 — 4.3 x 2.5Longer 36.86 €36.86 Excl. VAT

Drag ModelDimensions tip (mm)Tip lengthPriceStock C245-7543.5 x 0.75Normal 36.86 €36.86 Excl. VAT C245-6543.5 x 0.75Longer 36.86 €36.86 Excl. VAT C245-7514.0 x 1.25Normal 36.86 €36.86 Excl. VAT C245-6514.0 x 1.25Longer 37 €37.00 Excl. VAT C245-6674.0 x 1.25Longer 36.86 €36.86 Excl. VAT C245-6693.5 x 1.25Longer 36.86 €36.86 Excl. VAT C245-7962.2 x 0.75Normal 36.86 €36.86 Excl. VAT

Dual in line ModelDimensions tip (mm)Tip lengthPriceStock C245-2205.4 x 6.0Normal 58.78 €58.78 Excl. VAT C245-2505.4 x 8.0Normal 58.78 €58.78 Excl. VAT C245-2215.4 x 10.0Normal 58.78 €58.78 Excl. VAT C245-3036.5 x 6.0Normal 58.78 €58.78 Excl. VAT C245-2227.1 x 13.0Normal 58.78 €58.78 Excl. VAT C245-3069.6 x 10.0Normal 58.78 €58.78 Excl. VAT C245-3059.6 x 12.0Normal 58.78 €58.78 Excl. VAT C245-3049.6 x 15.0Normal 58.78 €58.78 Excl. VAT C245-2159.6 x 18.0Normal 58.78 €58.78 Excl. VAT C245-22615.2 x 29.0Normal 58.78 €58.78 Excl. VAT

QFP/PLCC ModelDimensions tip (mm)Tip lengthPriceStock C245-2238.5 x 8.5Normal 61.76 €61.76 Excl. VAT C245-22412.0 x 12.0Normal 61.76 €61.76 Excl. VAT C245-22812.4 x 15.0Normal 61.76 €61.76 Excl. VAT C245-35112.3 x 12.3Normal 52 €52.00 Excl. VAT C245-31515.0 x 15.0Normal 61.76 €61.76 Excl. VAT C245-35215.4 x 15.4Normal 61.76 €61.76 Excl. VAT C245-22717.5 x 17.5Normal 84.68 €84.68 Excl. VAT C245-34426.0 x 26.0Normal 84.96 €84.96 Excl. VAT

PLCC socket ModelDimensions tip (mm)Tip lengthPriceStock C245-24811.9 x 14.4Normal 61.76 €61.76 Excl. VAT C245-24717.0 x 17.0Normal 71.73 €71.73 Excl. VAT

Solder pot ModelDimensions tip (mm)Tip lengthPriceStock C245-SP0115.0 x 18.0Normal 120.33 €120.33 Excl. VAT

Heat stacking ModelDimensions tip (mm)Tip lengthPriceStock C245-0533.8 x 0.9Normal 33 €33.00 Excl. VAT C245-0524.9 x 2.0Normal 36.86 €36.86 Excl. VAT C245-0546.5 x 2.1Normal 36.86 €36.86 Excl. VAT C245-14311.0 x 1.2Normal 45 €45.00 Excl. VAT C245-7988.0 x 4.0Normal 45 €45.00 Excl. VAT C245-7919.8 x 4.0Normal 39 €39.00 Excl. VAT C245-3123.2 x 9.5Normal 39.85 €39.85 Excl. VAT C245-3134.1 x 9.5Normal 39.85 €39.85 Excl. VAT C245-1242.0 x 4.25Normal 39.85 €39.85 Excl. VAT C245-1234.0 x 4.0Normal 42.84 €42.84 Excl. VAT C245-3116.0 x 20.0Normal 45 €45.00 Excl. VAT C245-1632.5Normal 39.85 €39.85 Excl. VAT C245-1661.7Normal 32.3 €32.30 Excl. VAT C245-1672.1Normal 39.85 €39.85 Excl. VAT C245-1683.1Normal 35 €35.00 Excl. VAT C245-6883.2Normal 34.87 €34.87 Excl. VAT

Conformal coating removal (not for soldering) ModelDimensions (mm)Tip lengthPriceStock C245-1094.3 x 0.1Normal 32.87 €32.87 Excl. VAT

Cutter ModelDimensions (mm)Tip lengthPriceStock C245-12113.0 x 16.0Normal 49.81 €49.81 Excl. VAT C245-1389.9 x 12.0Normal 49.81 €49.81 Excl. VAT

Customized ModelDimensions (mm)Tip lengthPriceStock C245-0091.8 x 4.5Normal 36.86 €36.86 Excl. VAT C245-0101.8 x 4.4Normal 36.86 €36.86 Excl. VAT C245-1180.8 x 0.4Normal 39.85 €39.85 Excl. VAT C245-1191.0Normal 59.77 €59.77 Excl. VAT C245-2685.0 x 1.5Normal 59.77 €59.77 Excl. VAT C245-1366.5 x 7.1Normal 51.8 €51.80 Excl. VAT C245-1171.4-2.9 x 1.5Normal 39.85 €39.85 Excl. VAT C245-1165.0 x 3.0Normal 46.82 €46.82 Excl. VAT C245-7721.4 x 0.7Normal 79.7 €79.70 Excl. VAT C245-7710.1 x 1.0Normal 32.87 €32.87 Excl. VAT C245-7640.5 x 12.0Normal 26.9 €26.90 Excl. VAT

A tip marked HT is one with high thermal capacity, it heats up more slowly but can also transfer more energy to the solder surface.

A tip marked TS is one with an extra tinned surface.

A tip marked RTS is one with a reduced tinned surface, ideal for touching up.

A tip with name ending on E is one with a thicker iron layer, ideal for though and repetitive works in mass production. The thicker layer reduces thermal efficiency.

We can supply all C245 soldering tips. If you want a tip that is not listed here, you can contact us for this.

Large consumers

If you order 10 pieces or more in &eacute,n time we give a discount (also on mixed orders). Please contact us for a tailor-made quote.

For more information you can consult the guide below. From page 23 you can find the C245 soldering tips.
