Additional Features:
- Voltage: 0-20V
- Current: 0-130A
- Power: 2600W
- Zero voltage “Soft Switching”
- Simultaneous front panel display of output voltage and current
- Constant voltage or constant current operation
- Standby mode
- Remote sense with 5 V line loss compensation
- LabVIEW® and LabWindows® drivers
Protection Features
- Over voltage protection
- Over temperature protection

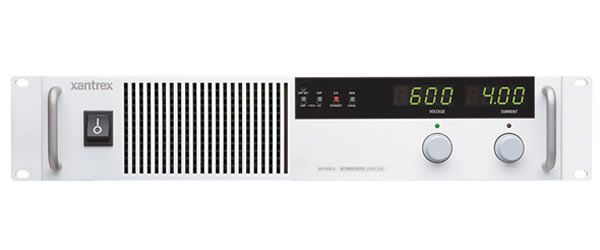

The Xantrex XFR20-130, 2.6 kW programmable DC power supply provides clean, reliable power for research, product development, and production test applications. The supplies are ideal for OEM applications where high power and a wide adjustment of output voltage or current are required in a full 19-inch rack package.
The XFR20-130 has excellent thermal management allowing for units to be stacked in rack mounts without any ventilation space required between each unit. The supplies offer high reliability with zero voltage, or “soft switching”, which virtually eliminates switching transients for high efficiency, decreased heat generation, and reduced stress on the switching transistors.
Технические характеристики
| Manufacturer | Xantrex |
|---|---|
| Condition | Used |
| Current | 130 A |
| Voltage | 20 V |
| Power | 2.6 kW |
