Description

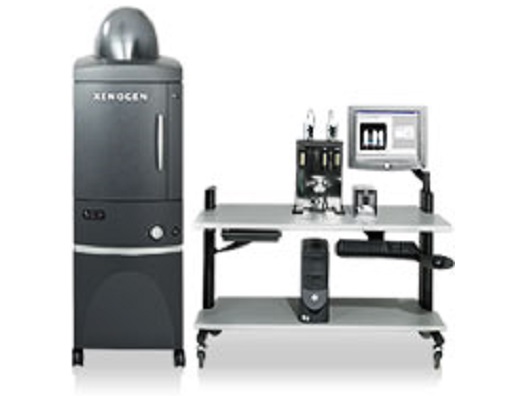

The Xenogen IVIS-200 System is a high-sensitivity, low noise, in vivo imaging technology platform that allows non-invasive visualization and tracking of cellular and genetic activity within a living organism, in real time. It’s capable of imaging bioluminescence and fluorescence. IVIS-200 provides Living Image software for image display and analysis.

Instrument Specifications

CCD Cameras
- Sensor
  - Back Illuminated
- CCD Format
  - 2048 x 2048 pixels
- CCD Size
  - 26 x 26 mm
- Effective CCD Format
  - 1920 x 1920 pixels
- Pixel Size
  - 13.5 x 13.5 um
- Quantum Efficiency
  - ~85% 400-700 nm
    - &gt,50% 350-900 nm
  - Readout Noise
    - &lt,5 electrons RMS
  - Dark Current
    - &lt,100 electrons/s/cm2 (-105°c)
  - Minimum Detectable Luminance
    - &lt,70 photons/s/sr/cm2
  - CCD Temperature
    - Nominal ~105°C
- Optics
  - Lens f/stop
    - f/1~f/8
  - Field of views (FOV)
    - 3.9, 6.5, 13, 19.5 and 26 cm
  - Resolution
    - &gt,60 um (FOV=3.9, f/1)
  - Scanning Laser
    - &lt,1 mW at 532 nm
- Fluorescence Imaging Components
  - Excitation Filters
    - 6 positions, 25 mm diameter
  - Emission Filters
    - 22 positions, 60 mm diameter
  - Background (Autofluorescence and Leakage)
    - 1 part in 107 typical
  - Lamp
    - 150 W Quartz Halogen 21 V 3250° Kelvin
