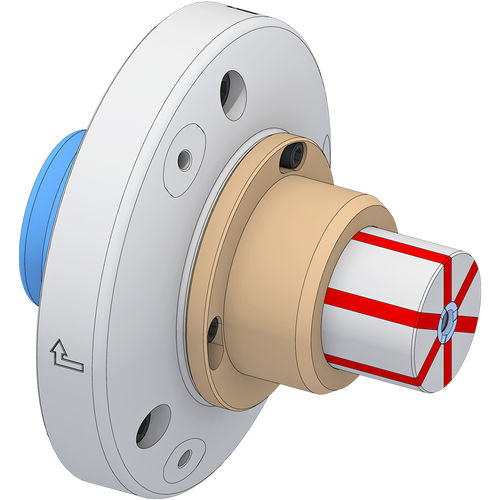

No problem to change-over from O.D. clamping to I.D. clamping Change-over from O.D. clamping to perfect I.D. clamping, without changing the clamping device? No problem with MANDO Adapt: Place the mandrel in the mounted clamping device, tighten three screws, and lock the mandrel in the clamping device. Reduce time In this process the mandrel engages in the coupling of the clamping device via a sophisticated mechanism, where otherwise the clamping head engages. MANDO Adapt is attractive with extreme rigidity and precision. Without adjusting For rotating products, concentricity of 0.005 mm between chuck taper and mandrel taper can be achieved. For stationary clamping devices repeatability of 0.003 mm is possible. And best of all: This can all be accomplished without adjusting.
Технические характеристики
CharacteristicsOther characteristicsprecision, dead length, with adapterClamping range
Min.: 13 mm (0.51 in)
Max.: 100 mm (3.94 in)
Rotational speed
Min.: 0 rpm (0 rad.min-1)
Max.: 7,000 rpm (43,982 rad.min-1)
