Description

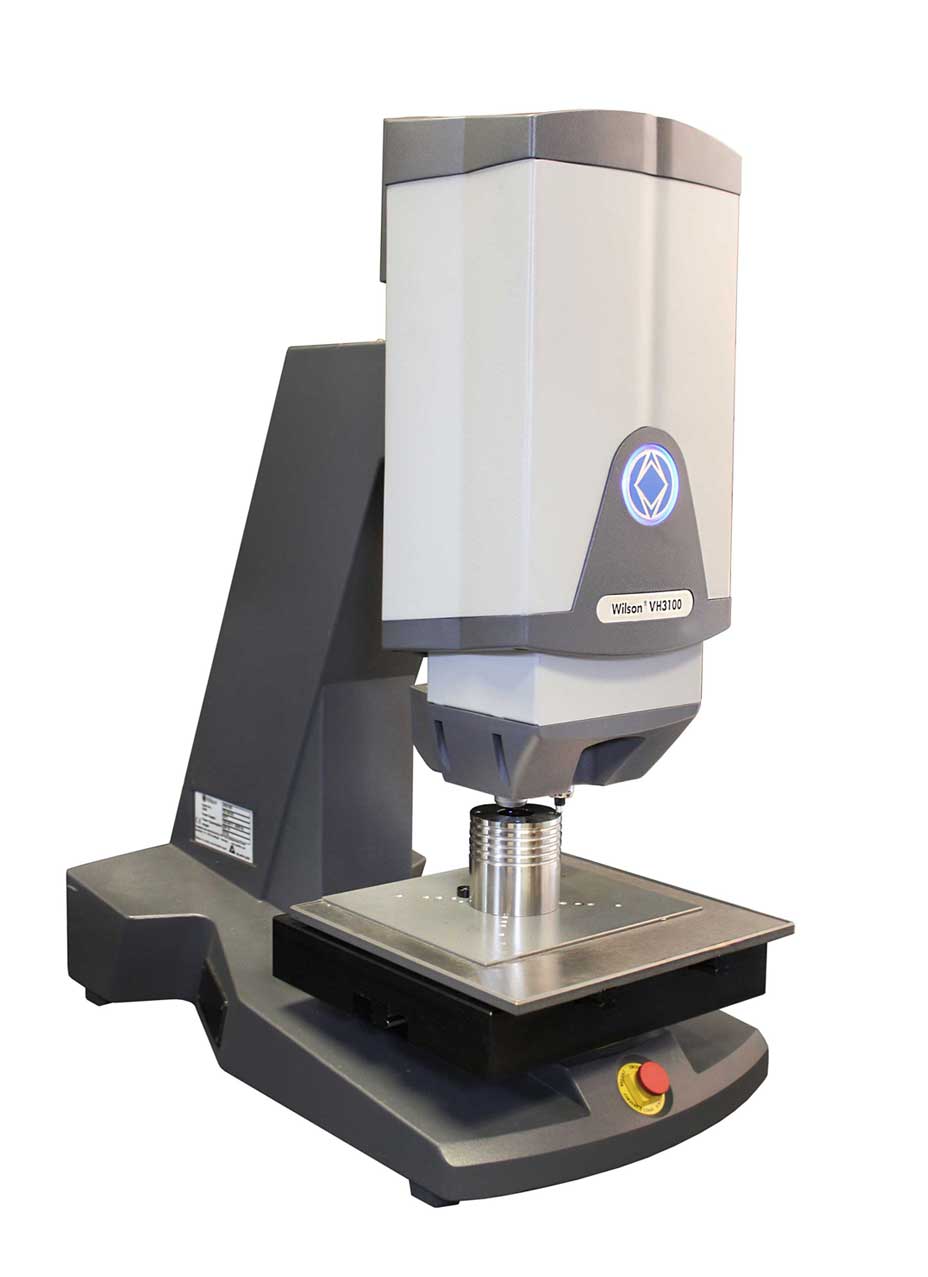

The Wilson VH3100 Vickers/Knoop Hardness Tester is an automated, load cell based system designed for durability and precise control. The virtual, user-operated/automated moving stage positions the sample as needed and maximizes accuracy and efficiency. The VH3100 features calibrated digital objectives with multiple magnification ranges that offer a clearer view of the sample. With a 10 second dwell time, the VH3100 can perform 150 make-and-measure indents per hour. The operator creates a traverse pattern of indents, and the Hardness Tester runs the program quickly and effectively. The VH3100 is also collision-resistant, automatically stopping and retracting to prevent damage to the indenter or camera.
The VH3100 Automated Knoop/Vickers Hardness Tester features a powerful load application range of 50 gf — 10 kgf. Innovative digital zoom stepping provides a wide magnification range of 0.5x to 80x. The powerful qualities of this unit provide the precise and reproducibility aerospace, automotive, energy, construction, and transportation industries require.
All components and software are completely designed, manufactured, and integrated by Wilson Hardness.
Технические характеристики
Specs
| Load Range | 0.05kgf to 10kgf |
| Magnification Range | 0.5x to 80x |
| Dwell Time | 10 seconds |
| Overview Camera (optional) | 5 MP bright field |
| Test Scales | HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10, HK0.2, HK0.3, HK0.5, HK1, HK2 |
