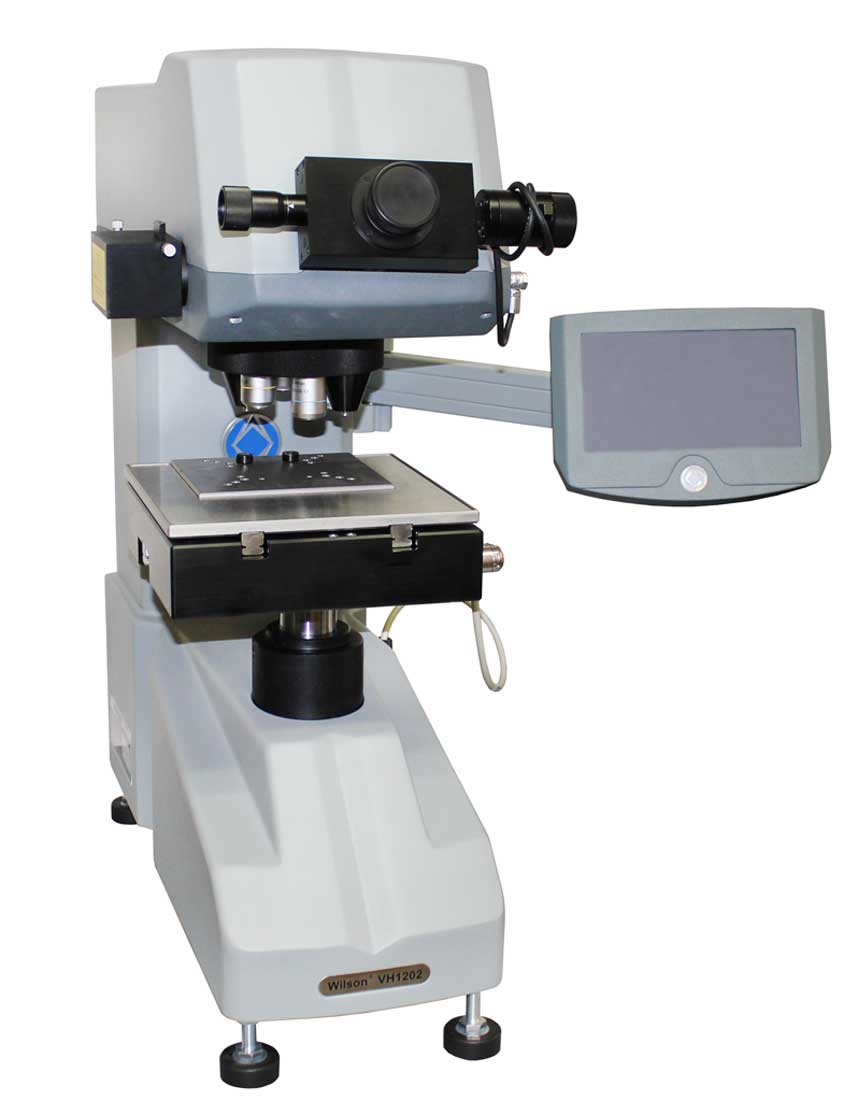

Wilson VH1102-VH1202 Knoop-Vickers Micro Hardness Testers (VH1102-1202)

Description

The Wilson VH1102 & VH1202 Micro Hardness Testers are a test machine designed to work for both Knoop and Vickers hardness testing. Utilizing both Knoop and Vickers testing techniques offers a versatile, affordable, and reliable solution for accurate micro-hardness testing. Both of these techniques provide quality control and metallurgical research applications. When conducting measurements, you are offered the choice of using the digital eyepiece in standalone mode or an integrated high-resolution camera with DiaMet software.

VERSATILITY FOR ANY LAB

The motorized turnet is a precise mechanic, allowing for a fast and quiet positioning. By having an automated test cycle, the user is able to switch between indenters and objectives. In order to have all the magnification power possible in applications, users have the option of either 4 or 6 objective slots in the turret. Although objectives are typically 10x and 50x, they can be extended to 100x allowing a total magnification of up to 1000x. When working with the VH1202, the objective is 5x which allows for easier navigation. This long working distance objective of the VH1202 lowers risks of a collision resulting in reduced maintenance costs.

ACCURATE RESULTS

This product provides state-of-the-art optical systems, providing an unparelled image with propietary compents. Previously unavailable with other hardness testers, the VH1102-1202 acquires the precision needed for the most accurate measurements possible.

AUTOMATIC LOAD SELECTION WITH 9 LOAD STEPS

0.01kg 0.025kg 0.05kg 0.1kg 0.2kg 0.3kg 0.5kg 1kg 2kg HV0.01 HV0.025 HV0.05 HV0.1 HV0.2 HV0.3 HV0.5 HV1 HV2 HK0.01 HK0.025 HK0.05 HK0.1 HK0.2 HK0.3 HK0.5 HK1 HK2

If interested in purchasing this product, please contact Berg Engineering at 847-577-3980 or email info@bergeng.com.

Технические характеристики

Specs

PACKAGE OPTIONS
