Description

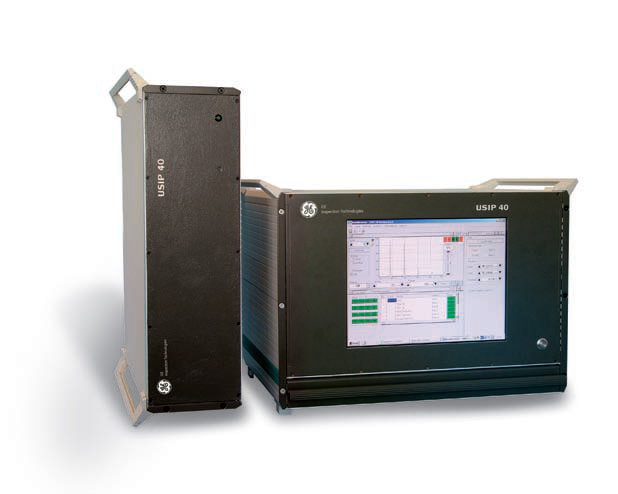

The Waygate Technologies Krautkramer USIP 40 Multi-Channel Ultrasonic Flaw Detector, a Baker Hughes business product (formerly GE Inspection Technologies), delivers precision, multi-channel ultrasonic testing performance you can rely on. It is available with up to ten ultrasonic channels and comes in three different package options – a remote ultrasonic unit, an integrated rack-mount instrument, or a fully portable, battery-powered instrument. All versions utilize the same core electronic hardware and Graphical User Interface. When you combine its outstanding ultrasonic performance with optional application specific imaging and analysis tools, you can see that the USIP 40 is the ultimate solution for your current and future inspection needs.
Accommodates a Wide Field of Applications:
Aerospace
The USIP 40 Aero configuration is qualified to GE DFO P3TF22, P3TF30, P3TF35, and RRAE RPS705 specifications for jet engine component inspections. USIP 40 instruments are also extensively used for airframe composite inspection by leading aircraft manufacturers.
Automotive
Used in conjunction with Ultraproof imaging software, the USIP 40 is the perfect instrument for inspecting pistons and other safety critical parts. Configured in this way, the USIP 40 provides visualization and recording of alarm outputs as well as automatic evaluation and reporting of single flaws, interacted flaws, and total numbers of flaws per part and per batch.
Pipe and Tube
With the appropriate probe holders and imaging software, the USIP 40 is easily set up for weld inspection, multi-channel flaw detection and wall thickness measurement.
Plate and Billet
Combining inspection productivity and coverage requires multiple inspection channels. The 10-Channel USIP 40 fills this need in both manual and automated inspection environments.
Roll Testing
The multi-channel USIP 40 combined with C-Scan imaging provides rapid scanning of industrial rollers. Waygate Technologies’ K-Scan software knits multiple ultrasonic channels to form one continuous C-Scan. In combination with the USIP 40’s 20,000 Hz PRF, this package is perfect for high-speed defect evaluation and sizing.
Vessel Weld Inspection
Combined with Ultramap Weld software, the USIP 40 can be configured to perform multi-channel inspections of welds on pressure vessels to ASME Case 2235 utilizing both Time of Flight Diffraction (TOFD) and pulse-echo B-Scan imaging and data archiving tools.
Технические характеристики
Specs
| Number of Channels | Up to 10 Channels in Maximum 20 Cycles |
| Pulse Repetition Freq. | 4 to 20000 Hz, Proportionally Divided for Each Cycle |
| Pulser | Spike Pulse 100 V, 400 V / Charging Capacitor, 1 nF, 220 pF / Rise Time, 10 ns |
| Wide-Band Filter (-3 dB) | 0.2 30 MHz / 10 30 MHz / 1 10 MHz |
| Narrow-Band Filter | 1 / 2.25 / 5 / 10 / 15 MHz |
| Gain | 0 110 dB, in 0.5 dB Steps |
| Fine Gain Setting | 1 dB, Continuously Variable in 10 Steps |
| Rectifier | Full-Wave, Negative, Positive Half-Wave, RF Mode |
| Reject | Linear, 0 80 % Screen Height |
| TCG | 44 dB with Maximum 12 dB/&mu,s |
| DAC/TCG | DAC or TCG with up to 16 Reference Echoes per Cycle, Multiple DAC Mode with up to Four Additional Curves at Variable Spacing from the Reference Curve, Individual Curves for Each Cycle Possible |
| Backwall Echo Attenuation | Full Dynamic Range of 110 dB |
| Sound Velocity | 500m/sec — 20000m/sec (0.02 inch/sec — 0.78 /sec) |
| Digital Upsampling | 400 MHz, 9 bits |
| A-Scan Display | 512 or 1024 Pixels, Range: 4.5 mm — 15 m in 0.1 mm Increments (0.1 — 590 in 0.004 Increments) , Pulse Delay -10 mm — 15 m in 0.1 mm Increments (-0.4 — 590 in 0.004 Increments), Display Start with Initial Pulse or Interface Echo |
| Evaluation Gates | Four (Interface, A, B, C) Color Coded and Independent per Cycle, Coincidence or Anticoincidence Logic Selectable, Flaw Suppression per Counter (1 16), Trigger: Initial Pulse or Interface, Width 0.1 mm — 15 m in 0.1 mm Increments (0.003 — 590 in 0.004 Increments), Start 0.0 mm — 15 m in 0.1 mm Increments (0 — 590 in 0.004 Increments) |
| Amplitude Resolution | 0.5 % of Display Range |
| Thickness Resolution | 2.5 ns Corresponding to 0.007 mm (0.000275) at Sound Velocity of Steel |
| Thickness Measurement Modes | Measurements Selectable between Initial Pulse or Interface Echo and Gates A, B, or C or between Gates A and B. Start/Stop at Zero Crossing, Flank or Peak Echo Including Tolerance Monitor with 4 Thickness Values Min and Max per Cycle |
| Data Output | Measurement Readings Output as Max Amplitude or Min/Max Thickness Value. Alarm Output Amplitude Threshold or Min/Max Thickness Value. |
| Analog Outputs | 10 User-Programmable for Measurement Readings (Active/Min/Max), Wall Thickness/Echo Amplitude 0 to 10 V, 12 Bit Resolution. |
| Alarm Outputs | 16 User-Programmable for Cycle and Threshold, for Flaw Threshold via TTL (Coincidence/Anticoincidence), for Thickness Tolerance Monitor via TTL with Range Overflow and Underflow. |
| Test Data Release | 4 User-Programmable Inputs for Each Test Channel |
| Encoder Inputs | 3 Inputs for Quadrature or Pulse/Direction Encoders, Compression of Ultrasonic Data on Path Grid. |
| Units | mm, inch, &mu,s |
| Operator Interface Languages | User Configurable in English, German, French, Spanish, Chinese and Japanese |
| Interconnects | Probes: Lemo 00 or BNC, RF Output: Lemo 00, I/O: 25-pin Sub D, 37-pin Sub D, Sync: 9-pin Sub D, Video: VGA Out 15-pin Sub D Rack and Portable Configuration also Include — Mouse and Keyboard: PS2 (Rack only), Serial Interface: 9-pin Sub D, 2 x USB |
| Network | Box with Ethernet TCP/IP, 100 MB/s |
| Mains Operation | Rack and Box via Internal Power Supply (85 265 VAC), Power Consumption 40 W (Rack), 24 W (Box). Portable Version via External Power Supply (85 265 VAC), Battery Operation: Two Li-Ion Battery Packs (Hot Swap), 10.8 V, 7.2 Ah ea, 3.25 h Operation. 70 W During Charging |
| Operating Temperature | 0 — 40 C (32 F — 104 F) |
| Size (HxWxD) and Weight | Rack: 310 mm x 450 mm x 375 mm (12.2 x 17.7 x 14.75) (7U), 16.5 kg (36.36 lb) Box: 125 mm x 450 mm x 430 mm (4.9 x 17.7 x 16.9) (3U), 7 kg (15.4 lb) Portable: 390 mm x 374 mm x 150 mm (15.3 x 14.7 x 5.9), 8.2 kg (18.1lb) Incl. 2 Li-Ion Batteries |
