Description

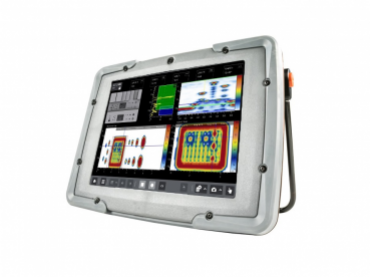

The Waygate Technologies Krautkramer Mentor UT, a Baker Hughes business product (formerly GE Inspection Technologies), is a powerful, connected ultrasonic flaw detector optimized for corrosion and erosion mapping of process vessels, pipes, and tanks. The Mentor UT brings the power of array inspection to everyday use with an intiuitive, touch-screen interface, and customizable inspection applications (‘apps’). Users can create their own apps or use the preinstalled apps and completely customize the user interface to meet their needs. The device setup and calibration are simple to learn and can save in training costs while upping productivity.
Технические характеристики
Specs
| Physical | |
| Dimensions (W x H x D) | 295 mm x 230 mm x 60 mm (12 x 9.4 x 2.4) |
| Weight (with battery) | 2.9 kg (6.5 lbs) |
| Display | |
| Size | 264 mm (10.4) diagonal |
| Resolution | 1024 x 768 pixels |
| Mode | Indoor and outdoor specific color modes |
| Viewing Angle | ±, 85˚ all directions |
| Touch Screen (Multi-touch) | |
| Gloved Operation | Yes |
| Surface | Chemically strengthened glass, scratch resistant, chemical resistant, optically bonded to display |
| Data Storage | |
| Solid State Hard Drive | 128 GB |
| USB Storage | USB 2.0 w included module |
| Data Capture | Full ASCAN capture for every CSCAN point, all settings. Recall on instrument with full analysis capability |
| Data Files | memd files, CSV files |
| Settings Files | All instrument settings plus position in workflow |
| Screen Capture | JPG Format |
| Report | PDF Format |
| Connectivity | |
| Wi-Fi | 802.11 b, g, n |
| Connectors | USB 2.0, Ethernet, HDMI |
| Remote Collaboration | Local Network and Internet-Enabled via InspectionWorks Connect |
| InspectionWorks | Enabled |
| I/O | |
| Axes | 2 digital quadrature encoders for X-Y axes |
| Audible | Tone, 2.7 kHz |
| Power | |
| Internal Battery | 63 WH Lithium Ion |
| External Battery | 84 WH Lithium Ion |
| Power Supply | 100 to 240 VAC, 4763 Hz, 1.9 A, 12VDC |
| Battery Life | 3 hrs internal, 6 hrs with external battery under typical operating conditions |
| Compliance | Meets IATA air transport regulations with one contained installed battery and one packed external battery |
| Environmental | |
| Operating Temperature | -20C to +55 C (-4F to 131F) to MIL-STD-810G Method 501.5 & 502.5, Procedure I |
| Storage Temperature | -20C to +70C (-4F to 158F) to MIL-STD-810G Method 501.5 & 502.5, Procedure II |
| Ingress Protection | Tested to IP65 |
| Shock | 4 Transit Drop to MIL-STD-810G method 516.6, Procedure V |
| Data Visualization | |
| User Interface | Customizable with Mentor Create software |
| Zoom | Any data view may be expanded to full screen with gesture |
| Instructional Material | Rich Text, JPG, PNG, BMP, PDF or Video (MP4) |
| Views | A-SCAN, C-SCAN, C-SCAN OVERVIEW, E-SCAN, S-SCAN |
| Probe Selection | Swap between conventional and phased array on same screen |
| Evaluation | 2 Gates, one can be used as interface echo gate |
| Measurements | Amplitudes, Depth, Distance, % Wall Loss, Thinnest Point, X and Y Positions |
| Calibrations | Phased Array: TCG, Material Velocity, Probe Delay, Auto80, Encoder Cal, Dead Element Check Conventional: 2 Point (Material Velocity and Probe Delay) |
| Configuration | |
| Phased Array | |
| Channels | 32:32 PR |
| Aperture | 132 Elements |
| Focal Laws | 1024 |
| Scanning | Linear, sectorial, focused |
| Groups | Up to 8 |
| Conventional | |
| Channels | 1 |
| Pulser (Phased Array and Conventional) | |
| PRF | 10 Hz to 20 kHz |
| Pulse Shape | Bipolar or unipolar square wave |
| Voltage | 20150 Vpp, 0 — -75V0p, in 5 V steps |
| Width (auto or manual) | 503000 nS |
| Delay Step Increment | 10 nS |
| Receiver and Digitizer (Phased Array and Conventional) | |
| Gain | 078 dB (Phased Array), 0-94 dB (Conventional), in 0.2 dB steps |
| TCG | |
| Number of Points | Up to 16 |
| Slope | 50 dB/S |
| Rectification | Pos HW, Neg HW, Full, RF |
| Bandwidth | 0.5 MHz to 15 MHz |
| Digitizing Rate | 62.5 MHz, up-sampled to 500 MHz |
| Delay Step Increment | 2.5 nS |
| Acquisition Range | 50 nS to 150 S |
| ASCAN Compression Points | 512, 1024, 2048, 4096 |
