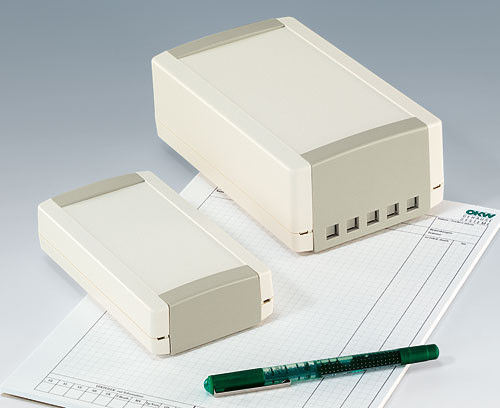

Product advantages: ◾modern aesthetic design for indoor applications as desktop or wall mounted systems as well as DIN rail mounted devices ◾simple and secure snap-together case assembly ◾for security, a tool is required to open the case ◾base part with lateral opening for quick and easy equipping from all sides ◾clip-in end panels allow PCBs, pre-fitted with connectors, to fit straight in ◾extensive range of 28 models ◾type F with flat top moulding ◾type H with high top moulding ◾versions with or without ventilation slots ◾ventilation slots can also be used for gas detection and sound ◾discreet wall mounting facility, the hidden wall suspension element, with fast release tab, snaps into apertures on the underside of the base ◾optional DIN rail mounting clip ◾protection class IP 40 ◾recess in top for a membrane keypad or label ◾internal screw pillars for PCBs etc.
Технические характеристики
CharacteristicsConstructionwall-mount, compactMaterialplasticApplicationdata, indoor, industrial, for displays, cabinet, medical, for controllers, monitoring, storage, for keyboardsProtection levelIP40Other characteristicscustom, designWidth
Max.: 115 mm (4.5 in)
Min.: 54 mm (2.1 in)
Height
Max.: 68 mm (2.7 in)
Min.: 30 mm (1.2 in)
Depth
Max.: 194 mm (7.6 in)
Min.: 102 mm (4 in)
