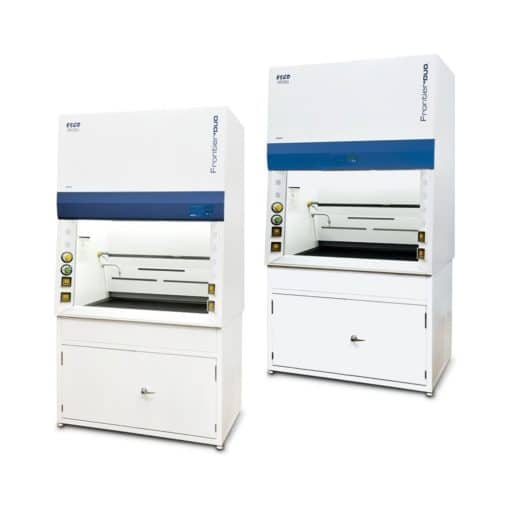

Product Description The Esco Frontier DuoTM Hood offers a solution representing design and engineering innovations that are at the forefront of fume hood technology. It provides superior containment of noxious chemical fumes at a face velocity of 0.5m/s while addressing worker comfort through its unique ergonomic design. Key Benefits ASHRAE 110 certified UL classified Clean looking aesthetics 8 degree sloped front of sash Features A fully configurable SentinelTM Silver Microprocessor control with audible and visual alarms for unsafe conditions. Instant-start electronically ballasted lighting system (>,900lux) that is flicker-free and isolated from the work zone. Integral fluorescent lighting mounted out of the air stream for better airflow uniformity. Electrical system designed to meet the latest international standards for safety. Internal liner is made of phenolic resin laminates with no exposed screws or metal to prevent corrosion. Black colored phenolic resin worktop surface resists staining. IsocideTM Antimicrobial coating on the cabinet prevents surface contamination and inhibits bacterial growth. Has a laminated vertical-rising sash with fail- safe counter-balanced mechanism Standard service fixtures include 1 water fixture, 1 gas fixture and 2 electrical outlets. Technical Specifications Guide to Models EFD-_ _ _ External Width Code Controller Code Electrical Code 1200 mm (47.2) 4 Rocket Switches A 220-240 VAC, 50/60 Hz 8 1500 mm (59.0) 5 Sentinal Silver Microprocessor Control System B 110-120 VAC, 50/60 Hz 9 1800 mm (70.9) 6 2400 mm (94.5) 8 General Specifications, Frontier Duo Fume Hood Model 220-240 VAC, 50/60 Hz, 1ø, EFD-4A-8 EFD-5A-8 EFD-6A-8 EFD-8A-8 EFD-4B-8 EFD-5B-8 EFD-6B-8 EFD-8B-8 110-120 VAC, 50/60 Hz, 1ø, EFD-4A-9 EFD-5A-9 EFD-6A-9 EFD-8A-9 EFD-4B-9 EFD-5B-9 EFD-6B-9 EFD-8B-9 Nominal Size 1.2 meter (4) 1.5 meter (5) 1.8 meter (6) 2.4 meter (8) External Dimensions (W x D x H) 1200 x 793 x 1500 mm (47.2 x 31.2 x 59.0) 1500 x 793 x 1500 mm (59.0 x 31.2 x 59.0) 1800 x 793 x 1500 mm (70.9 x 31.2 x 59.0) 2400 x 793 x 1500 mm (94.5 x 31.2 x 59.0) Internal Work Area Dimensions (W x D x H) 1000 x 592 x 1259 mm (39.4 x 23.3 x 49.6) 1300 x 592 x 1259 mm (51.2 x 23.3 x 49.6) 1600 x 592 x 1259 mm (63.0 x 23.3 x 49.6) 2200 x 592 x 1259 mm (86.1 x 23.3 x 49.6) Construction Main Body EG steel with oven-baked Epoxy-polyester hybrid Isocide powder coating Internal Liner Esco Resinate phenolic resin laminates Worktop Phenolic Resin Sash Specifications Sash Material Tempered Laminated and Framed Sash Glass Sash Configuration Vertical Sloping 8 slope Maximum Sash Opening 550 mm (21.7) #gap-1472207642 { padding-top: 30px, }
Технические характеристики
Technical Specifications
| Guide to Models | |||||
| EFD-_ _ _ | |||||
| External Width | Code | Controller | Code | Electrical | Code |
| 1200 mm (47.2′) | 4 | Rocket Switches | A | 220-240 VAC, 50/60 Hz | 8 |
| 1500 mm (59.0′) | 5 | Sentinal™ Silver Microprocessor Control System | B | 110-120 VAC, 50/60 Hz | 9 |
| 1800 mm (70.9′) | 6 | ||||
| 2400 mm (94.5′) | 8 |
| General Specifications, Frontier® Duo™ Fume Hood | |||||
| Model | 220-240 VAC, 50/60 Hz, 1ø | EFD-4A-8 | EFD-5A-8 | EFD-6A-8 | EFD-8A-8 |
| EFD-4B-8 | EFD-5B-8 | EFD-6B-8 | EFD-8B-8 | ||
| 110-120 VAC, 50/60 Hz, 1ø | EFD-4A-9 | EFD-5A-9 | EFD-6A-9 | EFD-8A-9 | |
| EFD-4B-9 | EFD-5B-9 | EFD-6B-9 | EFD-8B-9 | ||
| Nominal Size | 1.2 meter (4′) | 1.5 meter (5′) | 1.8 meter (6′) | 2.4 meter (8′) | |
| External Dimensions (W x D x H) | 1200 x 793 x 1500 mm (47.2′ x 31.2′ x 59.0′) | 1500 x 793 x 1500 mm (59.0′ x 31.2′ x 59.0′) | 1800 x 793 x 1500 mm (70.9′ x 31.2′ x 59.0′) | 2400 x 793 x 1500 mm (94.5′ x 31.2′ x 59.0′) | |
| Internal Work Area Dimensions (W x D x H) | 1000 x 592 x 1259 mm (39.4′ x 23.3′ x 49.6′) | 1300 x 592 x 1259 mm (51.2′ x 23.3′ x 49.6′) | 1600 x 592 x 1259 mm (63.0′ x 23.3′ x 49.6′) | 2200 x 592 x 1259 mm (86.1′ x 23.3′ x 49.6′) | |
| Construction | Main Body | EG steel with oven-baked Epoxy-polyester hybrid Isocide™ powder coating | |||
| Internal Liner | Esco Resinate phenolic resin laminates | ||||
| Worktop | Phenolic Resin | ||||
| Sash Specifications | Sash Material | Tempered Laminated and Framed Sash Glass | |||
| Sash Configuration | Vertical | ||||
| Sloping | 8° slope | ||||
| Maximum Sash Opening | 550 mm (21.7′) |
