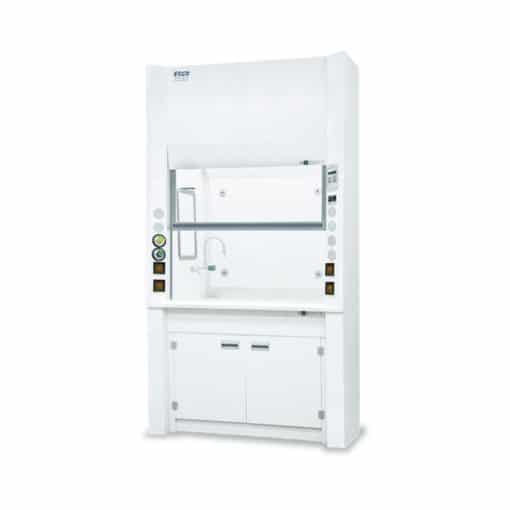

Product Description Suitable for metal sensitive work Excellent aesthetics 5 degree sloped front Unique perforated baffle design Superior containment at 0.5m/s High energy savings The Frontier PPH ducted fume hood provides the highest level of protection and containment against highly corrosive chemicals. Full polypropylene (PP) interior makes the fume hood metal-free and ideal for sensitive work such as trace metal analysis. PP also has an excellent rating against corrosion and chemical staining. Each PPH ducted fume hood comes standard with 1 x Water Enhanz Remote Controlled Fixture Plumbed to the rear 1 x Gas Enhanz Remote Controlled Fixture Plumbed to the rear 1 x PP Drip Cup located on left hand side of worktop 4 x Single Electrical Outlet with Splash Proof Cover Smooth Single PP Worksurface, Baffles and Carcass Features 1. Full polypropylene(PP) interior and exterior Metal-free: suitable for sensitive work such as trace metal analysis Wall: stress-relieved, acid-resistant, non-corrosive, bend-resistant Work-top: excellent acid and alkali erosion endurance, high heat and discoloration resistance 2. Operates safely at 0.5m/s at 18 (457mm) or full open sash position constant volume concept eliminates the need for complex VAV systems. 3. Optional Sentinel XL Airflow Monitor accurately monitors face velocity and alarms when inflow decreases to unsafe levels. 4. The tapered PP exhaust collar reduces airflow turbulence, static pressure loss, noise level and increases face velocity uniformity. 5. Perforated Baffles: improve capture efficiency. 6. Air Foil: reduce turbulence and eliminate backflow. 7. Structure design Sash: tempered safety polycarbonate, can be fully opened and set in any working position Base Cabinet: one shelf fixed in the left cabinet to prevent liquid leakage 8. Remote control water fixture and 1 gas fixture are factory installed and plumbed, Up to 4 services may be factory or field installed. 9. Perfect Pitch Profile: 5 Angled Front, this gentle pitch of the hood profile enhances visibility and maximizes operator comfort. 10. Removable structure for easy access: baffles, panel on internal side wall and rear access panel. Technical Specifications General Specifications, Frontier PPH Series PPH-_DP_W-_ External Width Code External Depth Code Internal Liner Code Sash Type Code Color Code Electrical Code 1220 mm (48.0) 4U 900 mm (35.4) M Esco PP P Vertical V Esco White W 220-240 VAC, 50/60 Hz 8 1525 mm (60.0) 5U Combination C 110-120 VAC, 50/60 Hz 9 1800 mm (70.8) 6U 2400 mm (94.5) 8U General Specifications, Frontier PPH Series Model 220-240 VAC, 50/60 Hz, 1ø, PPH-4UDPVW-8 PPH-5UDPVW-8 PPH-6UDPVW-8 PPH-8UDPVW-8 PPH-4UDPCW-8 PPH-5UDPCW-8 PPH-6UDPCW-8 PPH-8UDPCW-8 110-120 VAC, 50/60 Hz, 1ø, PPH-4UDPVW-9 PPH-5UDPVW-9 PPH-6UDPVW-9 PPH-8UDPVW-9 PPH-4UDPCW-9 PPH-5UDPCW-9 PPH-6UDPCW-9 PPH-8UDPCW-9 Nominal Size 1.2 meter (4) 1.5 meter (5) 1.8 meter (6) 2.4 meter (8) External Dimensions (W x D x H) Fume Hood unit only 1200 x 900 x 1500 mm (47.2 x 35.4 x 59.1) 1500 x 900 x 1500 mm (59.0 x 35.4 x 59.1) 1800 x 900 x 1500 mm (70.8 x 35.4 x 59.1) 2400 x 900 x 1500 mm (94.5 x 35.4 x 59.1) With Exhaust Collar 1200 x 900 x 1681 mm (47.2 x 35.4 x 66.2) 1500 x 900 x 1681 mm (59.0 x 35.4 x 66.2) 1800 x 900 x 1681 mm (70.8 x 35.4 x 66.2) 2400 x 900 x 1681 mm (94.5 x 35.4 x 66.2) With Fully-opened Sash 1200 x 900 x 1879 mm (47.2 x 35.4 x 74.0) 1500 x 900 x 1879 mm (59.0 x 35.4 x 74.0) 1800 x 900 x 1879 mm (70.8 x 35.4 x 74.0) 2400 x 900 x 1879 mm (94.5 x 35.4 x 74.0) Internal Dimensions (W x D x H) 980 x 665 x 1200 mm (38.6 x 26.1 x 47.2) 1280 x 665 x 1200 mm (50.4 x 26.1 x 47.2) 1580 x 665 x 1200 mm (62.2 x 26.1 x 47.2) 2180 x 665 x 1200 mm (85.8 x 26.1 x 47.2) Construction Main Body Polypropylene Internal Liner Worktop (default) Sash Specification Sash Material Polycarbonate Sash Configuration Vertical or Combination Sloping 5 Slope Maximum Sash Opening (two vertical sash opening) 790 mm (31.1) #gap-1004352500 { padding-top: 30px, }
Технические характеристики
Technical Specifications
| General Specifications, Frontier® PPH™ Series | |||||||||||
| PPH-_DP_W-_ | |||||||||||
| External Width | Code | External Depth | Code | Internal Liner | Code | Sash Type | Code | Color | Code | Electrical | Code |
| 1220 mm (48.0′) | 4U | 900 mm (35.4′) | M | Esco PP | P | Vertical | V | Esco White | W | 220-240 VAC, 50/60 Hz | 8 |
| 1525 mm (60.0′) | 5U | Combination | C | 110-120 VAC, 50/60 Hz | 9 | ||||||
| 1800 mm (70.8′) | 6U | ||||||||||
| 2400 mm (94.5′) | 8U |
| General Specifications, Frontier® PPH™ Series | |||||
| Model | 220-240 VAC, 50/60 Hz, 1ø | PPH-4UDPVW-8 | PPH-5UDPVW-8 | PPH-6UDPVW-8 | PPH-8UDPVW-8 |
| PPH-4UDPCW-8 | PPH-5UDPCW-8 | PPH-6UDPCW-8 | PPH-8UDPCW-8 | ||
| 110-120 VAC, 50/60 Hz, 1ø | PPH-4UDPVW-9 | PPH-5UDPVW-9 | PPH-6UDPVW-9 | PPH-8UDPVW-9 | |
| PPH-4UDPCW-9 | PPH-5UDPCW-9 | PPH-6UDPCW-9 | PPH-8UDPCW-9 | ||
| Nominal Size | 1.2 meter (4′) | 1.5 meter (5′) | 1.8 meter (6′) | 2.4 meter (8′) | |
| External Dimensions (W x D x H) | Fume Hood unit only | 1200 x 900 x 1500 mm (47.2′ x 35.4′ x 59.1′) | 1500 x 900 x 1500 mm (59.0′ x 35.4′ x 59.1′) | 1800 x 900 x 1500 mm (70.8′ x 35.4′ x 59.1′) | 2400 x 900 x 1500 mm (94.5′ x 35.4′ x 59.1′) |
| With Exhaust Collar | 1200 x 900 x 1681 mm (47.2′ x 35.4′ x 66.2′) | 1500 x 900 x 1681 mm (59.0′ x 35.4′ x 66.2′) | 1800 x 900 x 1681 mm (70.8′ x 35.4′ x 66.2′) | 2400 x 900 x 1681 mm (94.5′ x 35.4′ x 66.2′) | |
| With Fully-opened Sash | 1200 x 900 x 1879 mm (47.2′ x 35.4′ x 74.0′) | 1500 x 900 x 1879 mm (59.0′ x 35.4′ x 74.0′) | 1800 x 900 x 1879 mm (70.8′ x 35.4′ x 74.0′) | 2400 x 900 x 1879 mm (94.5′ x 35.4′ x 74.0′) | |
| Internal Dimensions (W x D x H) | 980 x 665 x 1200 mm (38.6′ x 26.1′ x 47.2′) | 1280 x 665 x 1200 mm (50.4′ x 26.1′ x 47.2′) | 1580 x 665 x 1200 mm (62.2′ x 26.1′ x 47.2′) | 2180 x 665 x 1200 mm (85.8′ x 26.1′ x 47.2′) | |
| Construction | Main Body | Polypropylene | |||
| Internal Liner | |||||
| Worktop (default) | |||||
| Sash Specification | Sash Material | Polycarbonate | |||
| Sash Configuration | Vertical or Combination | ||||
| Sloping | 5° Slope | ||||
| Maximum Sash Opening (two vertical sash opening) | 790 mm (31.1′) |
