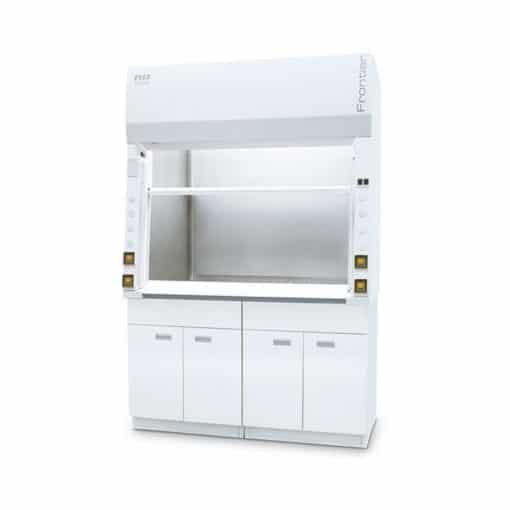

Вытяжной шкаф для радиоизотопов Esco Frontier®

Product Description UL classified Smooth coved corners Reinforced worksurface Excellent aesthetics 5 degree sloped front Superior containment at 0.3m/s High energy savings Esco Frontier Radioisotope (EFI) is a ducted fume hood designed for handling radioactive materials or radiopharmaceuticals. This specialized fume hood is built with stainless steel internal and work surfaces with coved, seamless welded corners for easy cleaning and decontamination. In addition, this type of ducted fume hood can be customize to accommodate lead shields, and reinforced worktop to accommodate lead bricks. Each EFI ducted fume hood comes standard with 1 x SS sink 1 x Water Enhanz Remote Controlled Fixture Plumbed to the Top 1 x Gas Enhanz Remote Controlled Fixture Plumbed to the Top 4 x Single Electrical Outlets with Splash Proof Cover Features Superstructure Tri-wall construction for maximum robustness. Internal chamber constructed of stainless steel 304 with coved corners. Option to upgrade to stainless steel 316 is available. Chain and Sprocket Sash support system. Hood lighting is pre-wired. Lighting is electronically ballasted, energy efficient, instant start. Typical light intensity on work surface is &gt, 1076 lux in zero ambient conditions. Reinforced work surface can hold loads of up to 15 kN/m (2.175 lb/in2). Safety Features Shaping vanes increase airflow sweep at the critical area at the sidewall to improve containment, especially when laboratory personnel walk fast in front of the hood. Sash stop limits sash movement beyond 457mm (18), encouraging user to work at safe positions. When sash is raised above 457mm (18), it will automatically and gently fall back to the safe level (Escos creep-down mechanism) unless held in place. This allows the sash to be raised temporarily to the full open position for set up of equipment and apparatus in the hood, while enforcing regular operation of the hood with lowered sash. The sash creep-down mechanism can only be disabled with a key. This permits the laboratory manager or safety officer to restrict operations at sash openings above 457mm (18.0). Sash key lock allows the laboratory manager to restrict access to fume hood. The sash can also be locked down in the fully closed position with the key , in the event of a fume hood fault, facility shutdown, or, simply to restrict access to equipment set up in the hood. Serviceability Stainless steel internal work zone allows for easy cleaning of all surfaces. Removable baffle system allows for thorough cleaning inside the hood. Chain and sprocket system requires minimal service. Safety Certified and Tested All Esco fume hoods are manufactured for the most demanding laboratory applications. Each Frontier Radioisotope Fume Hood is tested to comply with ASHRAE 110:1995 and EN14175-3 standards. Sash is clearly labeled with operating instructions and illustrations. Technical Specifications Guide to Models EFI-_D_ _W-_ External Width Code External Depth Code Internal Liner Code Sash Type Code Color Code Electrical Code 1220 mm (48.0) 4U 900 mm (35.4) D SS 304 4 Vertical V Esco White W 220-240 VAC, 50/60 Hz 8 1525 mm (60.0) 5U SS 316 (optional) 6 Combination C 110-120 VAC, 50/60 Hz 9 1830 mm (72.0) 6U 2440 mm (96.0) 8U General Specifications, Frontier Radioisotope Fume Hoods Model 220-240 VAC, 50/60 Hz, 1&oslash, EFI-4UD4CW-8 EFI-5UD4CW-8 EFI-6UD4CW-8 EFI-8UD4VW-8 EFI-4UD6CW-8 EFI-5UD6CW-8 EFI-6UD6CW-8 EFI-4UD4VW-8 EFI-5UD4VW-8 EFI-6UD4VW-8 EFI-8UD6VW-8 EFI-4UD6VW-8 EFI-5UD6VW-8 EFI-6UD6VW-8 110-120 VAC, 50/60 Hz, 1&oslash, EFI-4UD4CW-9 EFI-5UD4CW-9 EFI-6UD4CW-9 EFI-8UD4VW-9 EFI-4UD6CW-9 EFI-5UD6CW-9 EFI-6UD6CW-9 EFI-4UD4VW-9 EFI-5UD4VW-9 EFI-6UD4VW-9 EFI-8UD6VW-9 EFI-4UD6VW-9 EFI-5UD6VW-9 EFI-6UD6VW-9 Nominal Size 1.2 meter (4) 1.5 meter (5) 1.8 meter (6) 2.4 meter (8) External Dimensions (W x D x H) Fume Hood unit only 1220 x 900 x 1400 mm (48.0 x 35.4 x 55.1) 1525 x 900 x 1400 mm (60.0 x 35.4 x 55.1) 1830 x 900 x 1400 mm (72.0 x 35.4 x 55.1) 2440 x 900 x 1400 mm (96.1 x 35.4 x 55.1) With Exhaust Collar 1220 x 900 x 1521 mm (48.0 x 35.4 x 59.9) 1525 x 900 x 1521 mm (60.0 x 35.4 x 59.9) 1830 x 900 x 1521 mm (72.0 x 35.4 x 59.9) 2440 x 900 x 1521 mm (96.1 x 35.4 x 59.9) With Fully Opened Sash 1220 x 900 x 1603 mm (48.0 x 35.4 x 63.1) 1525 x 900 x 1603 mm (60.0 x 35.4 x 63.1) 1830 x 900 x 1603 mm (72.0 x 35.4 x 63.1) 2440 x 900 x 1603 mm (96.1 x 35.4 x 63.1) Internal Dimensions (W x D x H) 996 x 753 x 1246 mm (39.2 x 29.6 x 49.1) 1301 x 753 x 1230 mm (51.2 x 29.6 x 49.1) 1606 x 753 x 1230 mm (63.2 x 29.6 x 49.1) 2216 x 753 x 1230 mm (87.2 x 29.6 x 49.1) Construction Main Body Electrogalvanized steel with Epoxy-polyester hybrid Isocide powder coating Internal Liner (default) Stainless Steel 305 (Optional upgrade to SS 316) Worktop (default) Stainless Steel 305 (Optional upgrade to SS 316) Sash Specifications Sash Material Tempered Laminated and Framed Sash Glass Sash Configuration Vertical or Combination Vertical Sloping 5 Maximum Sash Opening 740 mm (29.1) #gap-1299708108 { padding-top: 30px, }

Технические характеристики

Technical Specifications
