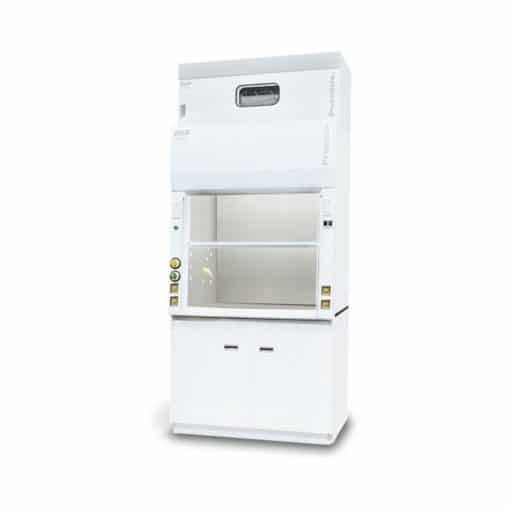

Вытяжной шкаф для хлорной кислоты Esco Frontier®

Product Description UL classified Smooth coved corners Built in wash down system Excellent aesthetics 5 degree sloped front Superior containment at 0.3m/s High energy savings Esco Frontier Perchloric Fume Hood (EFP) is a ducted fume hood designed for routine handling of hot perchloric acid and hot nitric acid. However, it is not advisable for applications involving sulphuric acid, acetic acid, organic solvents or any combustible materials. When heated, perchloric acid vaporizes and condenses to form metallic perchlorates on hood, duct, and fan components. In addition to being highly corrosive, condensed vapors can react with hood gaskets, greaser, and collected materials to form explosive perchlorate salts. EFP has a built-in wash down system that removes salts that may have accumulated in the hoods corners and baffle system through a series of water sprays. For added safety, Esco Fume scrubber is a required accessory used to prevent the formation of perchlorate salts in the hoods exhaust system. Each EFP Fume Hood comes standard with 1 x Water Enhanz Remote Controlled Fixture Plumbed to the Top 1 x Gas Enhanz Remote Controlled Fixture Plumbed to the Top 1 x Washdown Enhanz Remote Controlled Fixture Plumbed to the Top 4 x Single Electrical Outlet with Splash Proof Cover Smooth Single Piece SS Worksurface with Drainage Point Piping and Sprayer for Wash Down System Features Super structure Tri-wall construction for maximum robustness. Internal chamber constructed of grade 304 stainless steel with coved corners. Option to upgrade to grade 316 stainless steel is available. Chain and Sprocket Sash support system used. Hood lighting is pre-wired. Lighting is electronically ballasted, energy efficient, instant start. Typical light intensity on work surface is &gt, 1076 lux in zero ambient conditions Safety features Shaping vanes to increase airflow sweep at the critical area at the sidewall to improve containment, especially when someone walks fast in front of the hood Sash stop limits sash movement beyond 457mm (18), encouraging user to work at safe positions When sash is raised above 457mm (18), it will automatically and gently fall back to the safe level (Escos creep-down mechanism) unless held in place. This allows the sash to be raised temporarily to the full open position for set up of equipment and apparatus in hood, while enforcing regular operation of the hood with lowered sash Sash creep down can only be disabled with a key, which permits the laboratory manager or safety officer to restrict operation at sash openings above 457mm (18) Sash key lock to allow laboratory manager to restrict access to fume hood. The sash can also be locked down in the fully closed position with the key , in the event of a fume hood fault, facility shutdown, or, simply to restrict access to equipment set up in the hood. Wash down system behind baffles to wash away any perchlorate salts deposits on the baffles to prevent any build up of the salts which are explosive in nature. Water pump system installed to ensure water pressure is constant for wash down system. Serviceability Stainless steel interior chamber allows easy cleaning of surface Removable baffle system allows cleaning inside the hood Chain and sprocket system requires minimal service Warranty The Frontier Perchloric Fume Hood is warranted for 1 year excluding consumable parts and accessories. Contact your local sales representative for specific warranty details. Safety Tested Each Frontier Perchloric fume hood is Ashrae tested to make sure it complies with the Ashrae 110:1995 Standards. Wash down system is tested to ensure over 95% of area behind baffle is washed Sash is clearly labeled with all operating instructions and illustrations. Technical Specifications Guide to Models EFP-_D_ _W-_ External Width Code External Depth Code Internal Liner Code Sash Type Code Color Code Electrical Code 1220 mm (48.0) 4U 900 mm (35.4) D SS 304 4 Vertical V Esco White W 220-240 VAC, 50/60 Hz 8 1525 mm (60.0) 5U SS 316 (optional) 6 Combination C 110-120 VAC, 50/60 Hz 9 1830 mm (72.0) 6U 2440 mm (96.0) 8U General Specifications, Frontier Perchloric Acid Fume Hoods Model 220-240 VAC, 50/60 Hz, 1&oslash, EFP-4UD4VW-8 EFP-5UD4VW-8 EFP-6UD4VW-8 EFP-8UD4VW-8 EFP-4UD4CW-8 EFP-5UD4CW-8 EFP-6UD4CW-8 EFP-4UD6VW-8 EFP-5UD6VW-8 EFP-6UD6VW-8 EFP-8UD6VW-8 EFP-4UD6CW-8 EFP-5UD6CW-8 EFP-6UD6CW-8 110-120 VAC, 50/60 Hz, 1&oslash, EFP-4UD4VW-9 EFP-5UD4VW-9 EFP-6UD4VW-9 EFP-8UD4VW-9 EFP-4UD4CW-9 EFP-5UD4CW-9 EFP-6UD4CW-9 EFP-4UD6VW-9 EFP-5UD6VW-9 EFP-6UD6VW-9 EFP-8UD6VW-9 EFP-4UD6CW-9 EFP-5UD6CW-9 EFP-6UD6CW-9 Nominal Size 1.2 meter (4) 1.5 meter (5) 1.8 meter (6) 2.4 meter (8) External Dimensions (W x D x H) Fume Hood unit only 1220 x 900 x 1400 mm (48.0 x 35.4 x 55.1) 1525 x 900 x 1400 mm (60.0 x 35.4 x 55.1) 1830 x 900 x 1400 mm (72.0 x 35.4 x 55.1) 2440 x 900 x 1400 mm (96.1 x 35.4 x 55.1) Exhaust Collar and Pump Housing 1220 x 900 x 1692 mm (48.0 x 35.4 x 66.6) 1525 x 900 x 1692 mm (60.0 x 35.4 x 66.6) 1830 x 900 x 1692 mm (72.0 x 35.4 x 66.6) 2440 x 900 x 1692 mm (96.1 x 35.4 x 66.6) With Fully-opened Sash 1220 x 900 x 1603 mm (48.0 x 35.4 x 63.1) 1525 x 900 x 1603 mm (60.0 x 35.4 x 63.1) 1830 x 900 x 1603 mm (72.0 x 35.4 x 63.1) 2440 x 900 x 1603 mm (96.1 x 35.4 x 63.1) Internal Dimensions (W x D x H) 996 x 690 x 1258 mm (39.2 x 27.2 x 49.5) 1301 x 690 x 1258 mm (51.2 x 27.2 x 49.5) 1606 x 690 x 1258 mm (63.2 x 27.2 x 49.5) 2216 x 690 x 1258 mm (87.2 x 27.2 x 49.5) Construction Main Body Electrogalvanized steel with Epoxy-polyester hybrid Isocide powder coating Internal Liner Stainless Steel 305 (Optional upgrade to SS 316) Worktop Sash Specification Sash Material Tempered Laminated and Framed Sash Glass Sash Configuration Vertical or Combination Vertical Sloping 5 sloped Maximum Sash Opening 740 mm (29.1)

Технические характеристики

Technical Specifications
